型號：LWAD12038
材質(zhì)：塑料
電壓：12-48V
輸入功率：4.8-57.6W
轉(zhuǎn)速：2500-6000RPM
風量：2.84-6.81m3/min
產(chǎn)品特性：DC直流電機；高效率、低噪音、易安裝；性能穩(wěn)定、生命周期長；低壓啟動、過流保護；支持定制

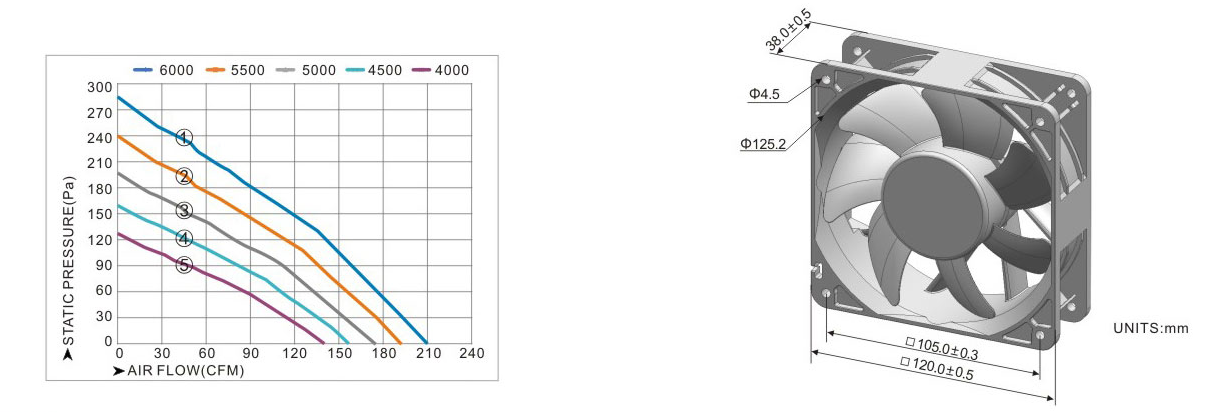

型號-朗偉 | 電壓 | 電流 | 風速 | 風量 | 靜壓 | 噪音 | 重量 | 曲線 | |||
V | A | RPM | CFM | m3/min | mm-H20 | Inch--H20 | Pa | dBA | g | ||
LWAD12038LX-04 | 12 | 3.5 | 6000 | 210.4 | 5.96 | 29.2 | 1.15 | 286 | 64 | 295g | 1 |
LWAD12038LH-05 | 12 | 1.5 | 5500 | 192.8 | 5.46 | 24.5 | 0.97 | 240 | 62.1 | 295g | 2 |
LWAD12038LM-06 | 12 | 1.2 | 5000 | 175.3 | 4.96 | 20.3 | 0.8 | 199 | 60 | 295g | 3 |
LWAD12038LL-07 | 12 | 1 | 4500 | 157.8 | 4.47 | 16.4 | 0.65 | 161 | 57.8 | 295g | 4 |
LWAD12038LD-08 | 12 | 0.8 | 4000 | 140.3 | 3.97 | 13 | 0.51 | 127 | 55.2 | 295g | 5 |
LWAD12038MX-04 | 24 | 1.2 | 6000 | 210.4 | 5.96 | 29.2 | 1.15 | 286 | 64 | 295g | 1 |
LWAD12038MH-05 | 24 | 1 | 5500 | 192.8 | 5.46 | 24.5 | 0.97 | 240 | 62.1 | 295g | 2 |
LWAD12038MM-06 | 24 | 0.8 | 5000 | 175.3 | 4.96 | 20.3 | 0.8 | 199 | 60 | 295g | 3 |
LWAD12038ML-07 | 24 | 0.6 | 4500 | 157.8 | 4.47 | 16.4 | 0.65 | 161 | 57.8 | 295g | 4 |
LWAD12038MD-08 | 24 | 0.5 | 4000 | 140.3 | 3.97 | 13 | 0.51 | 127 | 55.2 | 295g | 5 |
LWAD12038HX-04 | 48 | 0.8 | 6000 | 210.4 | 5.96 | 29.2 | 1.15 | 286 | 64 | 295g | 1 |
LWAD12038HH-05 | 48 | 0.6 | 5500 | 192.8 | 5.46 | 24.5 | 0.97 | 240 | 62.1 | 295g | 2 |
LWAD12038HM-06 | 48 | 0.5 | 5000 | 175.3 | 4.96 | 20.3 | 0.8 | 199 | 60 | 295g | 3 |
LWAD12038HL-07 | 48 | 0.3 | 4500 | 157.8 | 4.47 | 16.4 | 0.65 | 161 | 57.8 | 295g | 4 |
LWAD12038HD-08 | 48 | 0.2 | 4000 | 140.3 | 3.97 | 13 | 0.51 | 127 | 55.2 | 295g | 5 |
