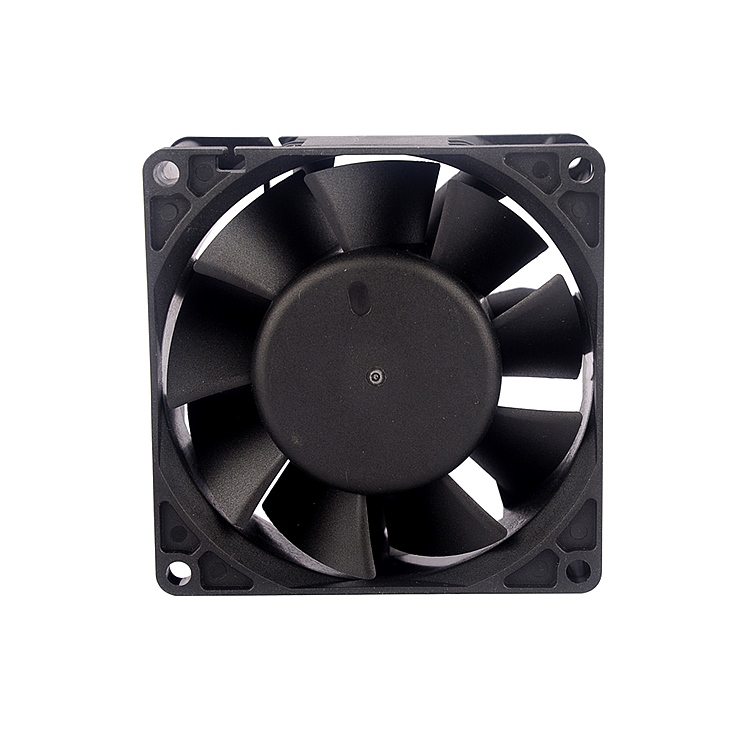

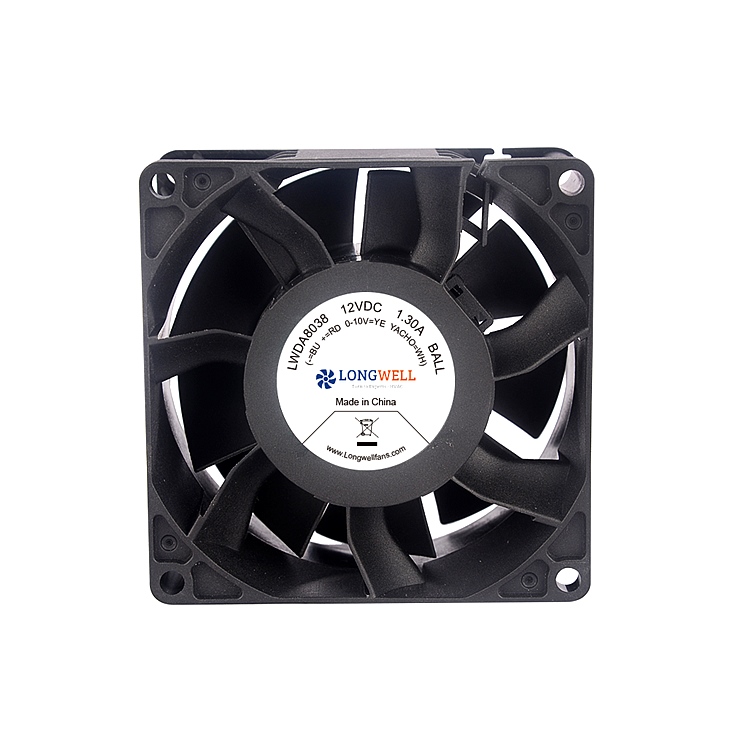

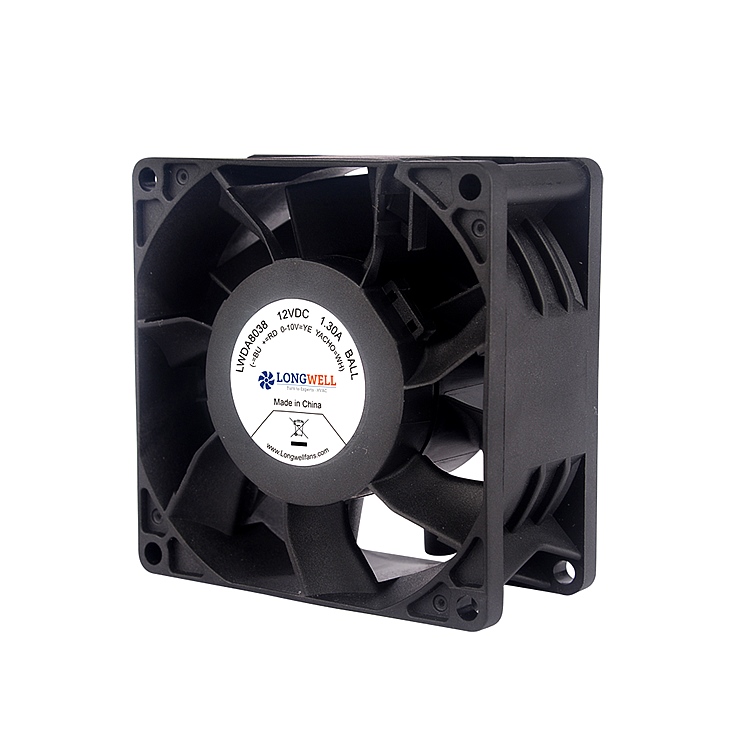

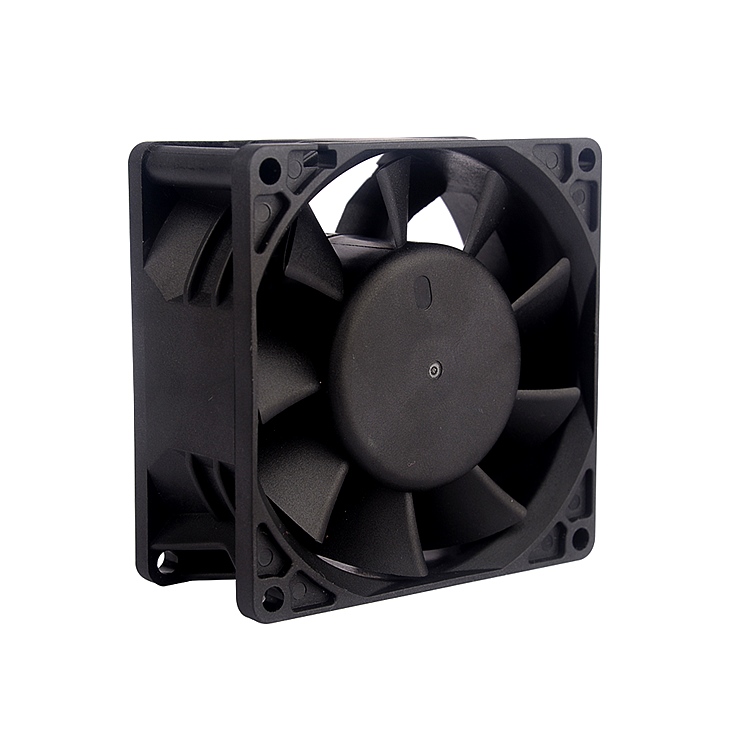

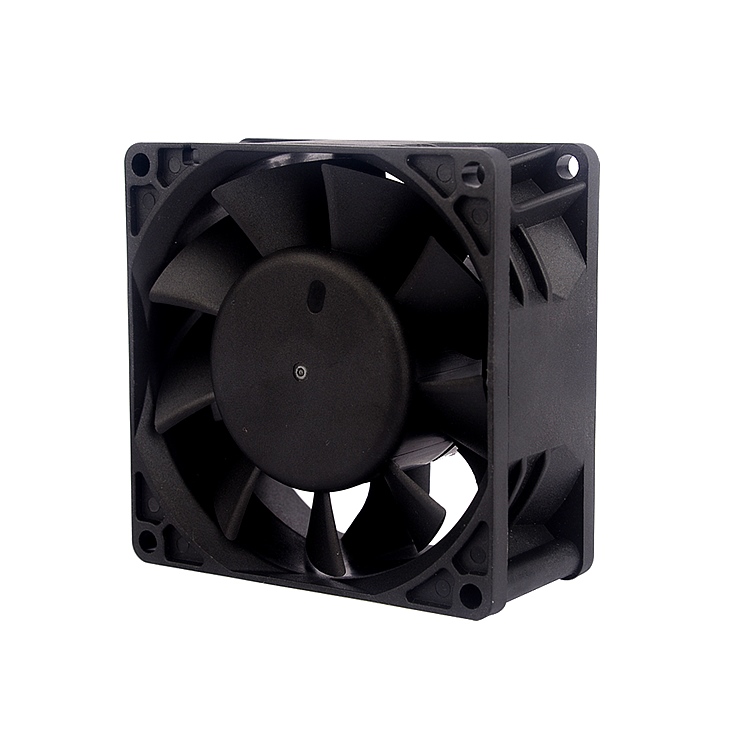

型號：LWAD8038
材質：塑料
電壓：12-48V
輸入功率：7.2-48W
轉速：3500-13500RPM
風量：1.63-3.67m3/min
產品特性：DC直流電機；高效率、低噪音、易安裝；性能穩定、生命周期長；低壓啟動、過流保護；支持定制
型號-朗偉 | 電壓 | 電流 | 風速 | 風量 | 靜壓 | 噪音 | 重量 | 曲線 | |||
V | A | RPM | CFM | m3/min | mm-H20 | Inch--H20 | Pa | dBA | g | ||
LWAD8038LX-05 | 12 | 3.5 | 13500 | 129.7 | 3.67 | 68.6 | 2.7 | 672 | 65 | 195g | 1 |
LWAD8038LX-06 | 12 | 3.5 | 12000 | 115.3 | 3.26 | 54.2 | 2.13 | 531 | 62.4 | 195g | 2 |
LWAD8038LX-07 | 12 | 3.5 | 11000 | 105.7 | 2.99 | 45.5 | 1.79 | 446 | 60.6 | 195g | 3 |
LWAD8038LX-08 | 12 | 3.5 | 10000 | 96.1 | 2.72 | 37.6 | 1.48 | 369 | 58.5 | 195g | 4 |
LWAD8038LH-09 | 12 | 1.2 | 9000 | 86.5 | 2.45 | 30.5 | 1.2 | 299 | 56.2 | 195g | 5 |
LWAD8038LM-10 | 12 | 1 | 8000 | 76.8 | 2.18 | 24.1 | 0.95 | 236 | 53.6 | 195g | 6 |
LWAD8038LL-11 | 12 | 0.8 | 7000 | 67.2 | 1.9 | 18.4 | 0.73 | 181 | 50.7 | 195g | 7 |
LWAD8038LD-12 | 12 | 0.6 | 6000 | 57.6 | 1.63 | 13.5 | 0.53 | 133 | 47.4 | 195g | 8 |
LWAD8038MX-05 | 24 | 1.6 | 13500 | 129.7 | 3.67 | 68.6 | 2.7 | 672 | 65 | 195g | 1 |
LWAD8038MX-06 | 24 | 1.6 | 12000 | 115.3 | 3.26 | 54.2 | 2.13 | 531 | 62,4 | 195g | 2 |
LWAD8038MX-07 | 24 | 1.6 | 11000 | 105.7 | 2.99 | 45.5 | 1.79 | 446 | 60.6 | 195g | 3 |
LWAD8038MX-08 | 24 | 1.6 | 10000 | 96.1 | 2.72 | 37.6 | 1.48 | 369 | 58.5 | 195g | 4 |
LWAD8038MH-09 | 24 | 0.8 | 9000 | 86.5 | 2.45 | 30.5 | 1.2 | 299 | 56.2 | 195g | 5 |
LWAD8038MM-10 | 24 | 0.5 | 8000 | 76.8 | 2.18 | 24.1 | 0.95 | 236 | 53.6 | 195g | 6 |
LWAD8038ML-11 | 24 | 0.4 | 7000 | 67.2 | 1.9 | 18.4 | 0.73 | 181 | 50.7 | 195g | 7 |
LWAD8038MD-12 | 24 | 0.3 | 6000 | 57.6 | 1.63 | 13.5 | 0.53 | 133 | 47.4 | 195g | 8 |
LWAD8038HX-05 | 48 | 1 | 13500 | 129.7 | 3.67 | 68.6 | 2.7 | 672 | 65 | 195g | 1 |
LWAD8038HX-06 | 48 | 1 | 12000 | 115.3 | 3.26 | 54.2 | 2.13 | 531 | 62,4 | 195g | 2 |
LWAD8038HX-07 | 48 | 1 | 11000 | 105.7 | 2.99 | 45.5 | 1.79 | 446 | 60.6 | 195g | 3 |
LWAD8038HX-08 | 48 | 1 | 10000 | 96.1 | 2.72 | 37.6 | 1.48 | 369 | 58.5 | 195g | 4 |
LWAD8038HH-09 | 48 | 0.35 | 9000 | 86.5 | 2.45 | 30.5 | 1.2 | 299 | 56.2 | 195g | 5 |
LWAD8038HM-10 | 48 | 0.3 | 8000 | 76.8 | 2.18 | 24.1 | 0.95 | 236 | 53.6 | 195g | 6 |
LWAD8038HL-11 | 48 | 0.25 | 7000 | 67.2 | 1.9 | 18.4 | 0.73 | 181 | 50.7 | 195g | 7 |
LWAD8038HD-12 | 48 | 0.2 | 6000 | 57.6 | 1.63 | 13.5 | 0.53 | 133 | 47,4 | 195g | 8 |
