型號：LWAD9238
材質：塑料
電壓：12-48V
輸入功率：14.4-57.6W
轉速：3500-11000RPM
風量：2.41-4.89m3/min
產品特性：DC直流電機；高效率、低噪音、易安裝；性能穩定、生命周期長；低壓啟動、過流保護；支持定制

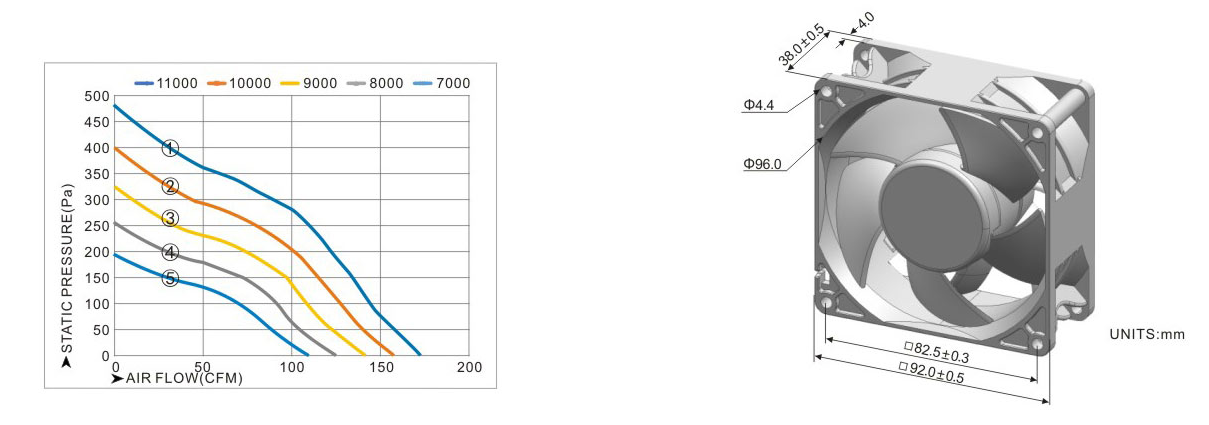

型號-朗偉 | 電壓 | 電流 | 風速 | 風量 | 靜壓 | 噪音 | 重量 | 曲線 | |||
V | A | RPM | CFM | m3/min | mm-H20 | Inch--H20 | Pa | dBA | g | ||
LWAD9238LX-05 | 12 | 4 | 11000 | 172.8 | 4.89 | 49.6 | 1.95 | 486 | 68 | 206g | 1 |
LWAD9238LH-06 | 12 | 3 | 10000 | 157.1 | 4.45 | 41 | 1.61 | 401 | 65.9 | 206g | 2 |
LWAD9238LM-07 | 12 | 2 | 9000 | 141.4 | 4 | 33.2 | 1.31 | 325 | 63.6 | 206g | 3 |
LWAD9238LL-08 | 12 | 1.5 | 8000 | 125.7 | 3.56 | 26.2 | 1.03 | 257 | 61.1 | 206g | 4 |
LWAD9238LD-09 | 12 | 1.2 | 7000 | 110 | 3.11 | 20.1 | 0.79 | 197 | 58.2 | 206g | 5 |
LWAD9238MX-05 | 24 | 2 | 11000 | 172.8 | 4.89 | 49.6 | 1.95 | 486 | 68 | 206g | 1 |
LWAD9238MH-06 | 24 | 1.5 | 10000 | 157.1 | 4.45 | 41 | 1.61 | 401 | 65.9 | 206g | 2 |
LWAD9238MM-07 | 24 | 1 | 9000 | 141.4 | 4 | 33.2 | 1.31 | 325 | 63.6 | 206g | 3 |
LWAD9238ML-08 | 24 | 0.8 | 8000 | 125.7 | 3.56 | 26.2 | 1.03 | 257 | 61.1 | 206g | 4 |
LWAD9238MD-09 | 24 | 0.6 | 7000 | 110 | 3.11 | 20.1 | 0.79 | 197 | 58.2 | 206g | 5 |
LWAD9238HX-05 | 48 | 1.2 | 11000 | 172.8 | 4.89 | 49.6 | 1.95 | 486 | 68 | 206g | 1 |
LWAD9238HH-06 | 48 | 1 | 10000 | 157.1 | 4.45 | 41 | 1.61 | 401 | 65.9 | 206g | 2 |
LWAD9238HM-07 | 48 | 0.8 | 9000 | 141.4 | 4 | 33.2 | 1.31 | 325 | 63.6 | 206g | 3 |
LWAD9238HL-08 | 48 | 0.6 | 8000 | 125.7 | 3.56 | 26.2 | 1.03 | 257 | 61.1 | 206g | 4 |
LWAD9238HD-09 | 48 | 0.4 | 7000 | 110 | 3.11 | 20.1 | 0.79 | 197 | 58.2 | 206g | 5 |
