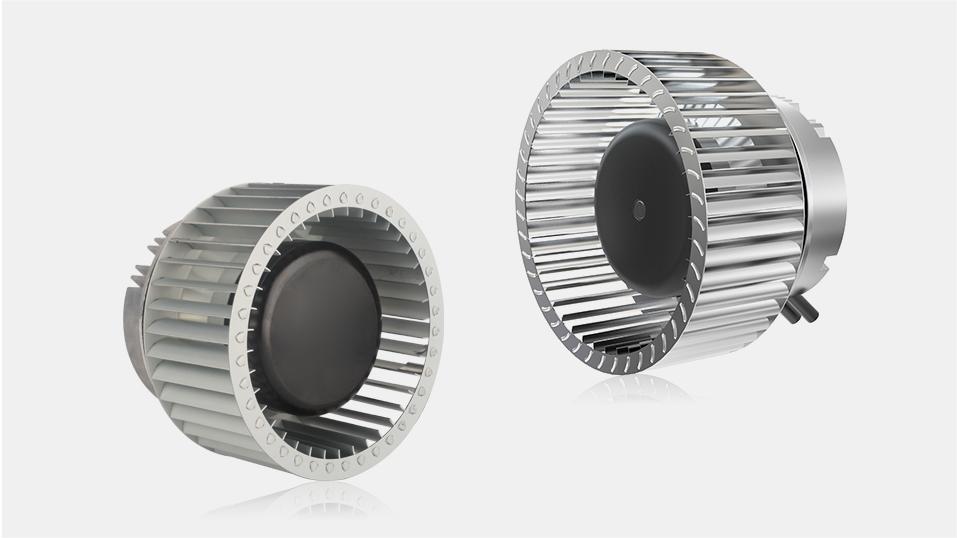

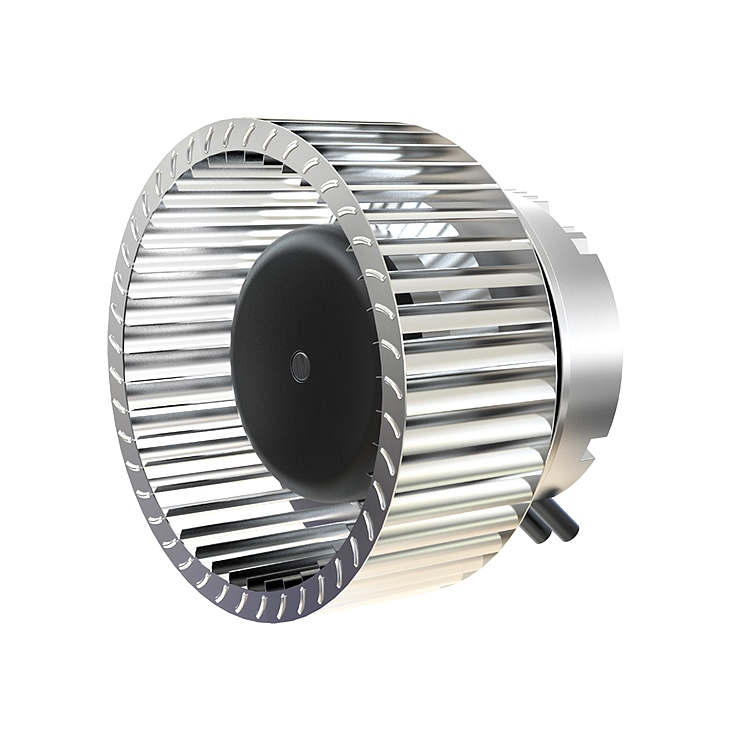

型號: LWFE系列EC前傾式離心風輪
葉輪尺寸: 108mm、120mm、133mm、140mm、160mm、180mm
電機類型: 無刷EC(BLEC)外轉子電機
認證: CE, UL, RoHS, CCC, ETL等
特點:
-節能30% =降低運行成本
-提高制冷COP(性能系數)
-氣流調節簡單
-顯著降低噪音;
-使用壽命長，免維護
-無磨損，無需過濾
| Model | Motor diameter | Rated Voltage |
Frequency | Rated Power |
Rated Current |
Speed | Air Flow | Air Pressure |
Noise | Curve |
| mm | V | Hz | W | A | RPM | m3/h | Pa | dBA | ||
| LWFE3G108-072NS-01 | 72 | 230 | 50/60 | 82 | 0.65 | 3340 | 329.6 | 329.6 | 57 | / |
| LWFE3G120-072NS-01 | 72 | 230 | 50/60 | 90 | 0.67 | 3230 | 350.2 | 412 | 67 | / |
| LWFE3G133-072NS-01 | 72 | 230 | 50/60 | 85 | 0.67 | 2290 | 432.6 | 288.4 | 63 | / |
| LWFE3G140-072NS-01 | 72 | 230 | 50/60 | 70 | 0.58 | 1910 | 484.1 | 216.3 | 72 | / |
| LWFE3G140-072NS-02 | 72 | 230 | 50/60 | 115 | 0.85 | 2060 | 494.4 | 844.6 | 74 | / |
| LWFE3G160-072NS-01 | 72 | 230 | 50/60 | 115 | 0.85 | 1800 | 638.6 | 906.4 | 64 | / |
| LWFE3G160-072NS-02 | 72 | 230 | 50/60 | 155 | 1.1 | 3050 | 648.9 | 988.8 | 68 | / |
| LWFE3G160-092NS-03 | 92 | 230 | 50/60 | 230 | 1.65 | 3300 | 803.4 | 927 | 75 | / |
EC系統是什么？
#1：風扇
噪音極低
高效率
#2：外轉子電機
在寬速度范圍內具有教高效率；
產生的熱損失非常低
#3：控制器
所有控制和電磁兼容功能內置
EMC：電磁兼容性
EC產品將以更高效、更優異的結果完成更多工作。
應用領域:
AHUs工業建筑
電子柜冷卻
潔凈室模塊
熱交換器
空氣過濾系統
空氣門和空氣簾
服務器冷卻
機房空調(CRAC)系統
FAQ:
1, Are the manufacturer ?

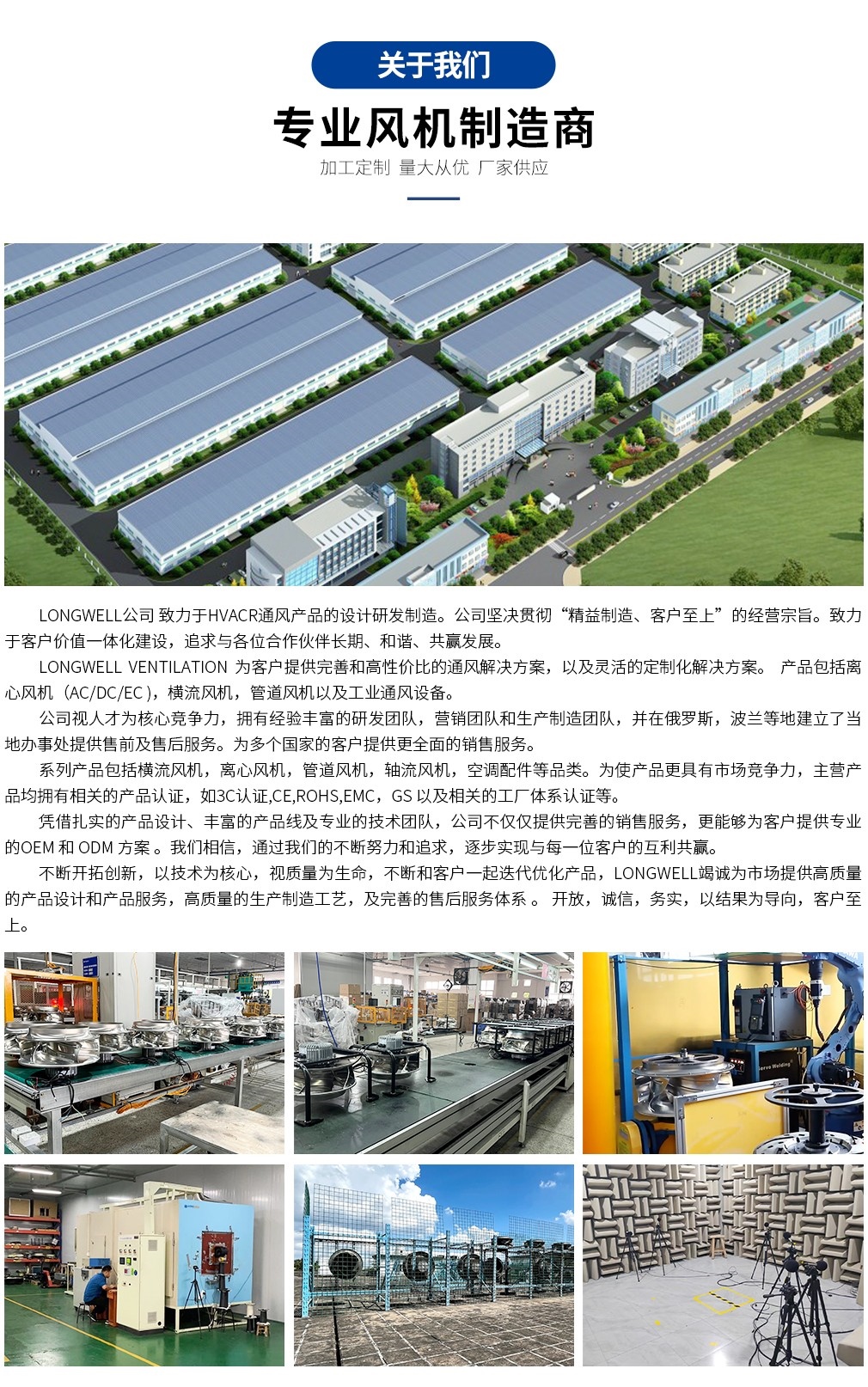

Yes, LONGWELL is a professional manufacturer which is the specialist in HVACR fans, motor and components for the applications of air conditioner, air ex-changer, coolers, heaters, floor convectors, sterilization purifier, air purifiers, medical purifiers, and ventilation, energy industry, 5G cabinet ...
2, Whats your main machines and capacity.
For the motors
We have owned CNC machines 18 units &4 auto-robots. capacity: 500k pcs annually.
Winding machine 20 units, capacity 500kpcs annually:
Magnetization machine 6: capacity 500kpcs annually
Balance machine 22 units: 500k pcs annually.
Boring mill: 2 units
High temp failure detection: 3 chambers 500k pcs annually.
