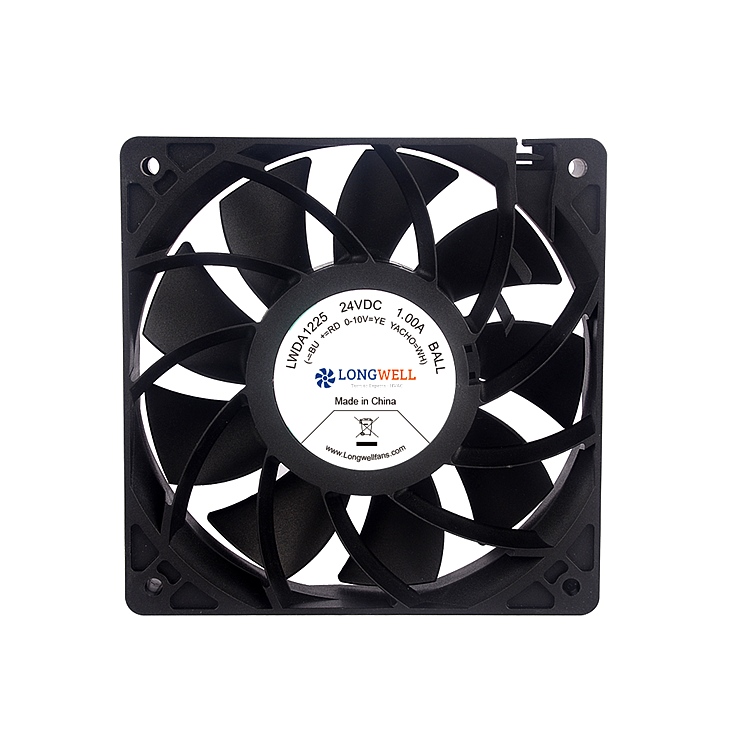

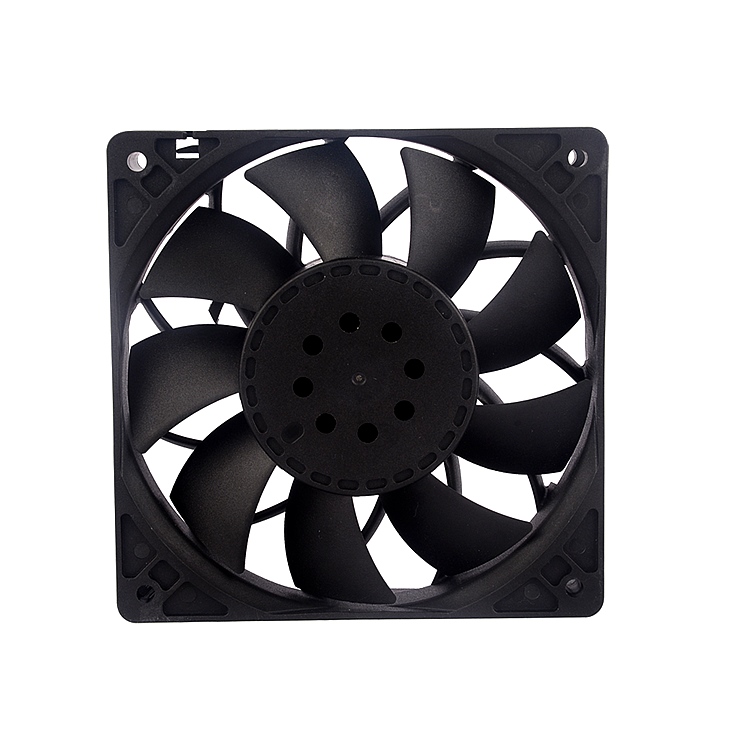

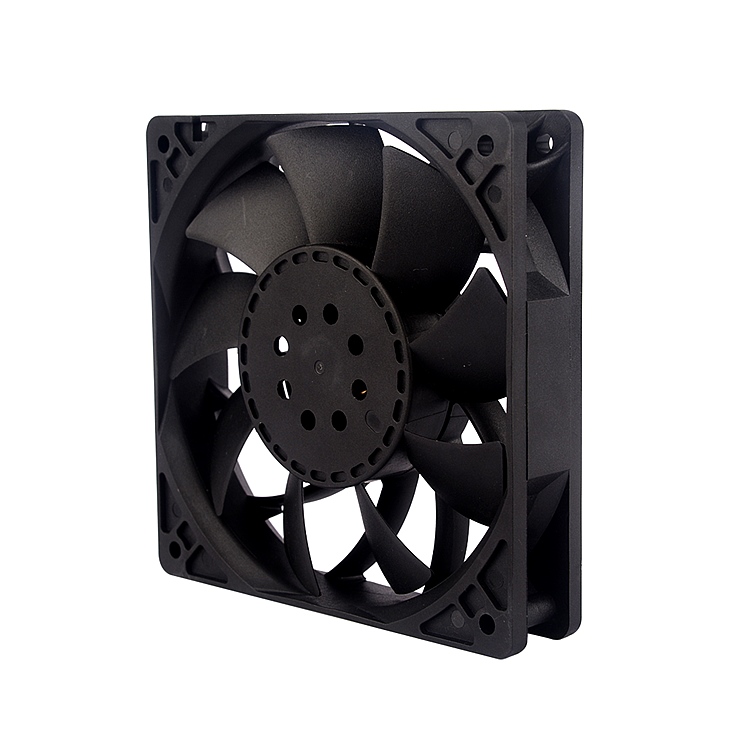

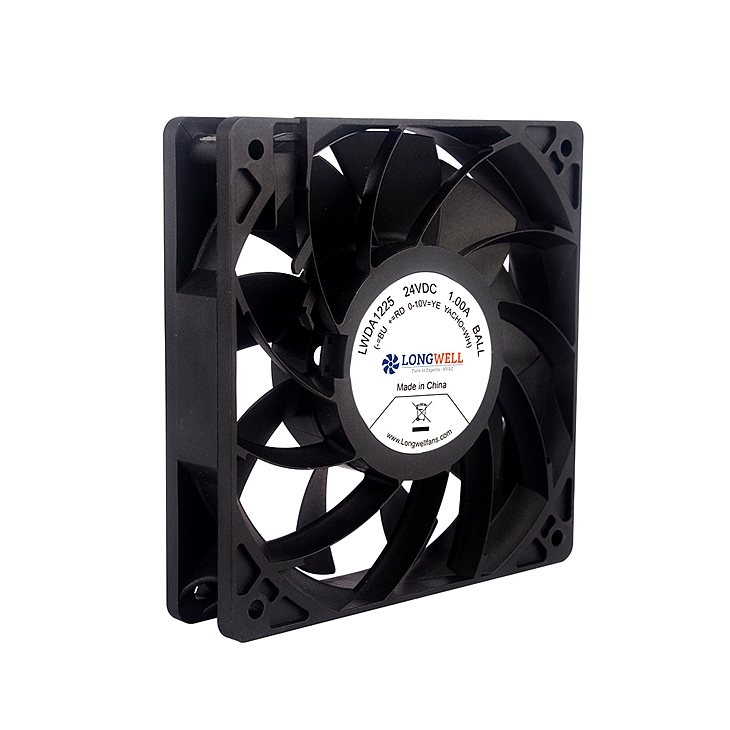

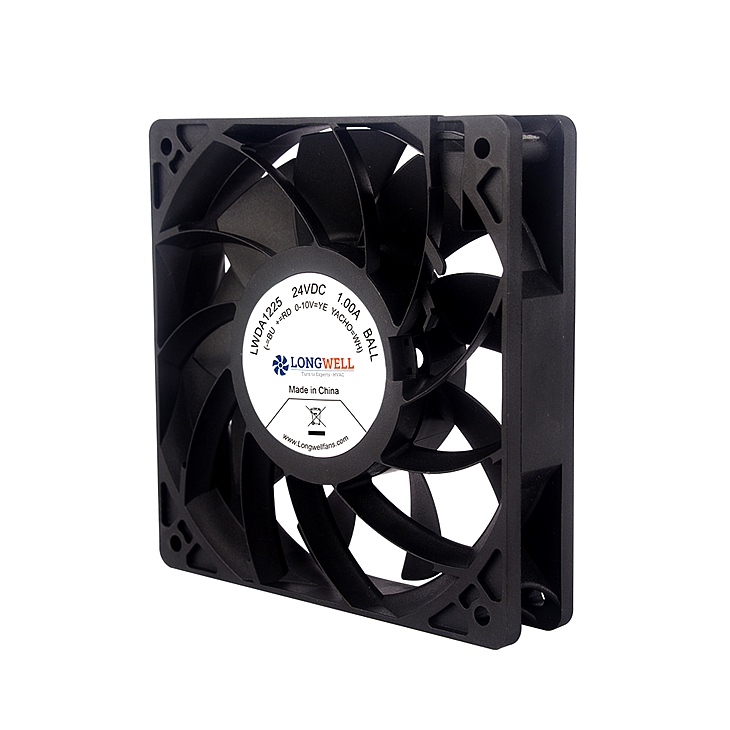

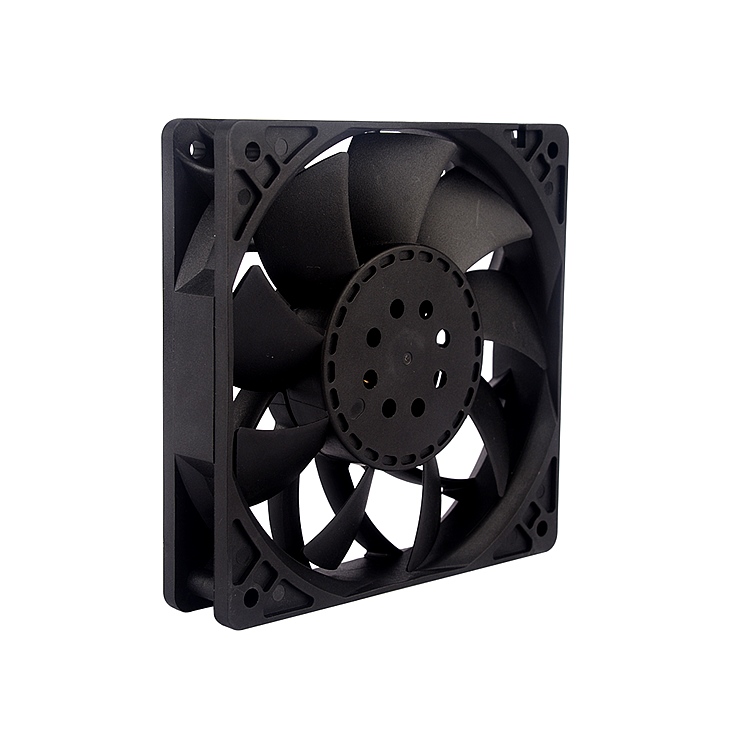

型號：LWAD12025
材質：塑料
電壓：12-48V
輸入功率：3.6-38.4W
轉速：1500-5000RPM
風量：1.42-5.02m3/min
產品特性：DC直流電機；高效率、低噪音、易安裝；性能穩定、生命周期長；低壓啟動、過流保護；支持定制

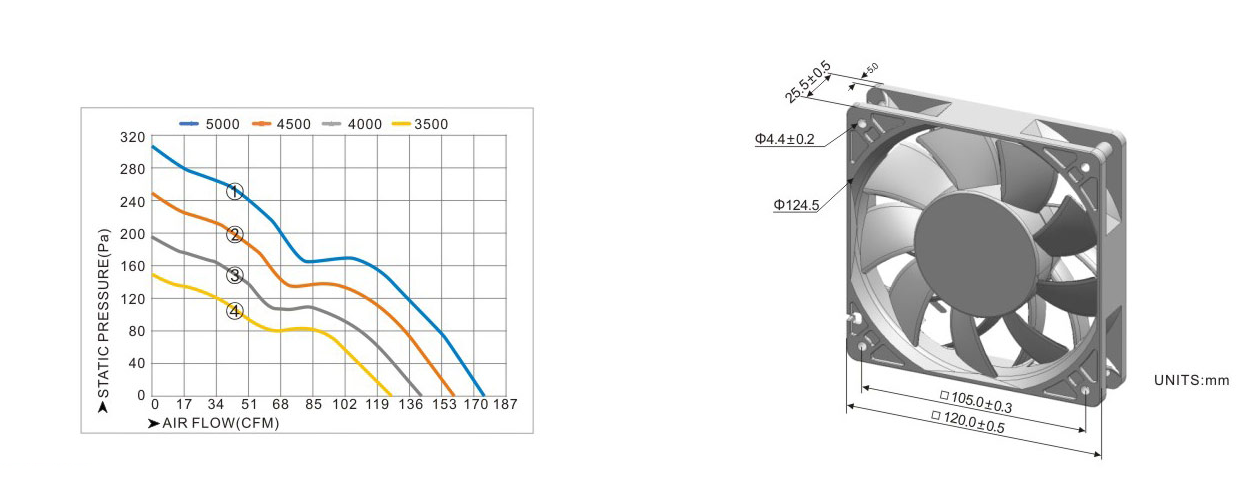

型號-朗偉 | 電壓 | 電流 | 風速 | 風量 | 靜壓 | 噪音 | 重量 | 曲線 | |||
V | A | RPM | CFM | m3/min | mm-H20 | Inch--H20 | Pa | dBA | g | ||
LWAD12025LX-07 | 12 | 2 | 5000 | 177.3 | 5.02 | 31.3 | 1.23 | 249 | 60.5 | 213g | 1 |
LWAD12025LH-08 | 12 | 1.5 | 4500 | 159.6 | 4.52 | 25.4 | 1 | 249 | 58.2 | 213g | 2 |
LWAD12025LM-09 | 12 | 1 | 4000 | 141.8 | 4.02 | 20 | 0.79 | 196 | 55.7 | 213g | 3 |
LWAD12025LL-10 | 12 | 0.6 | 3500 | 124.1 | 3.51 | 15.3 | 0.6 | 150 | 52.8 | 213g | 4 |
LWAD12025MX-07 | 24 | 1 | 5000 | 177.3 | 5.02 | 31.3 | 1.23 | 249 | 60.5 | 213g | 1 |
LWAD12025MH-08 | 24 | 0.8 | 4500 | 159.6 | 4.52 | 25.4 | 1 | 249 | 58.2 | 213g | 2 |
LWAD12025MM-09 | 24 | 0.6 | 4000 | 141.8 | 4.02 | 20 | 0.79 | 196 | 55.7 | 213g | 3 |
LWAD12025ML-10 | 24 | 0.5 | 3500 | 124.1 | 3.51 | 15.3 | 0.6 | 150 | 52.8 | 213g | 4 |
LWAD12025HX-07 | 48 | 0.8 | 5000 | 177.3 | 5.02 | 31.3 | 1.23 | 249 | 60.5 | 213g | 1 |
LWAD12025HH-08 | 48 | 0.5 | 4500 | 159.6 | 4.52 | 25.4 | 1 | 249 | 58.2 | 213g | 2 |
LWAD12025HM-09 | 48 | 0.4 | 4000 | 141.8 | 4.02 | 20 | 0.79 | 196 | 55.7 | 213g | 3 |
LWAD12025HL-10 | 48 | 0.3 | 3500 | 124.1 | 3.51 | 15.3 | 0.6 | 150 | 52.8 | 213g | 4 |
