型號：LWAD17251
材質(zhì)：塑料
電壓：12-48V
輸入功率：24-108W
轉(zhuǎn)速：2500-6000RPM
風量：5.19-12.91m3/min
產(chǎn)品特性：DC直流電機；高效率、低噪音、易安裝；性能穩(wěn)定、生命周期長；低壓啟動、過流保護；支持定制

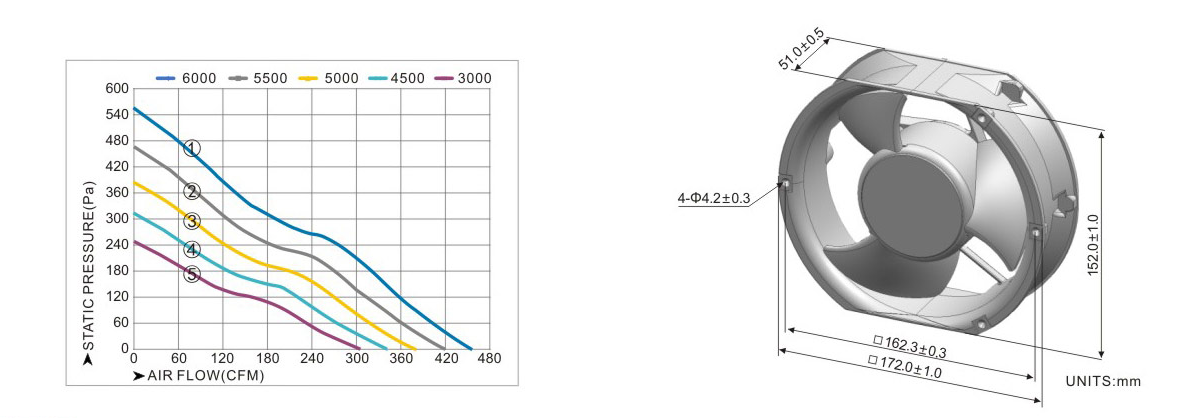

型號-朗偉 | 電壓 | 電流 | 風速 | 風量 | 靜壓 | 噪音 | 重量 | 曲線 | |||
V | A | RPM | CFM | m3/min | mm-H20 | Inch--H20 | Pa | dBA | g | ||
LWAD17251MX-06 | 24 | 4.5 | 6000 | 456 | 12.91 | 56.9 | 2.24 | 558 | 75 | 790g | 1 |
LWAD17251MX-07 | 24 | 3.5 | 5500 | 418 | 11.84 | 47.8 | 1.88 | 469 | 73.1 | 790g | 2 |
LWAD17251MH-08 | 24 | 2.5 | 5000 | 380 | 10.76 | 39.5 | 1.56 | 387 | 71 | 790g | 3 |
LWAD17251MM-09 | 24 | 2 | 4500 | 342 | 9.68 | 32 | 1.26 | 314 | 68.8 | 790g | 4 |
LWAD17251ML-10 | 24 | 1.5 | 4000 | 304 | 8.61 | 25.3 | 1 | 248 | 66.2 | 790g | 5 |
LWAD17251HX-06 | 48 | 2 | 6000 | 456 | 12.91 | 56.9 | 2.24 | 558 | 75 | 790g | 1 |
LWAD17251HX-07 | 48 | 1.6 | 5500 | 418 | 11.84 | 47.8 | 1.88 | 469 | 73.1 | 790g | 2 |
LWAD17251HH-08 | 48 | 1.2 | 5000 | 380 | 10.76 | 39.5 | 1.56 | 387 | 71 | 790g | 3 |
LWAD17251HM-09 | 48 | 1 | 4500 | 342 | 9.68 | 32 | 1.26 | 314 | 68.8 | 790g | 4 |
LWAD17251HL-10 | 48 | 0.6 | 4000 | 304 | 8.61 | 25.3 | 1 | 248 | 66.2 | 790g | 5 |
