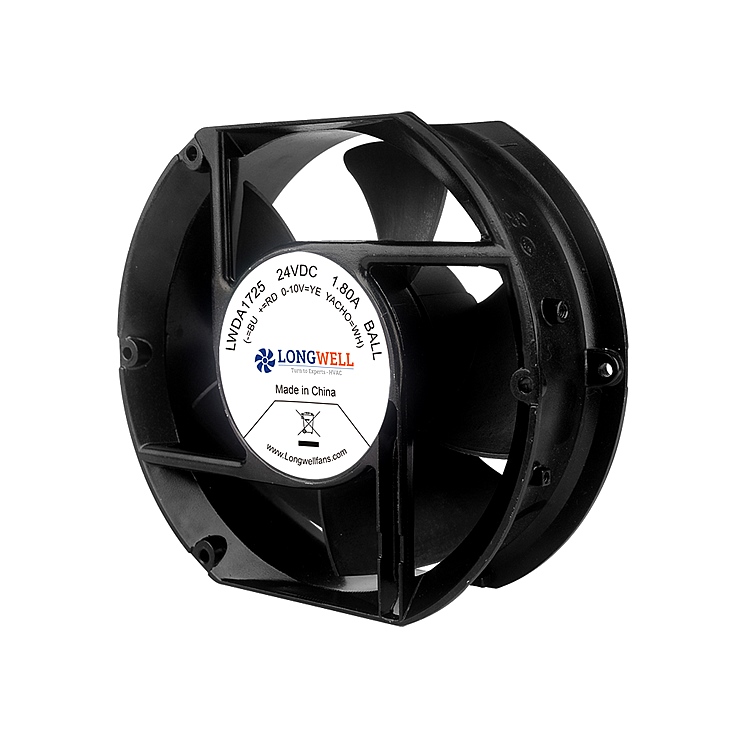

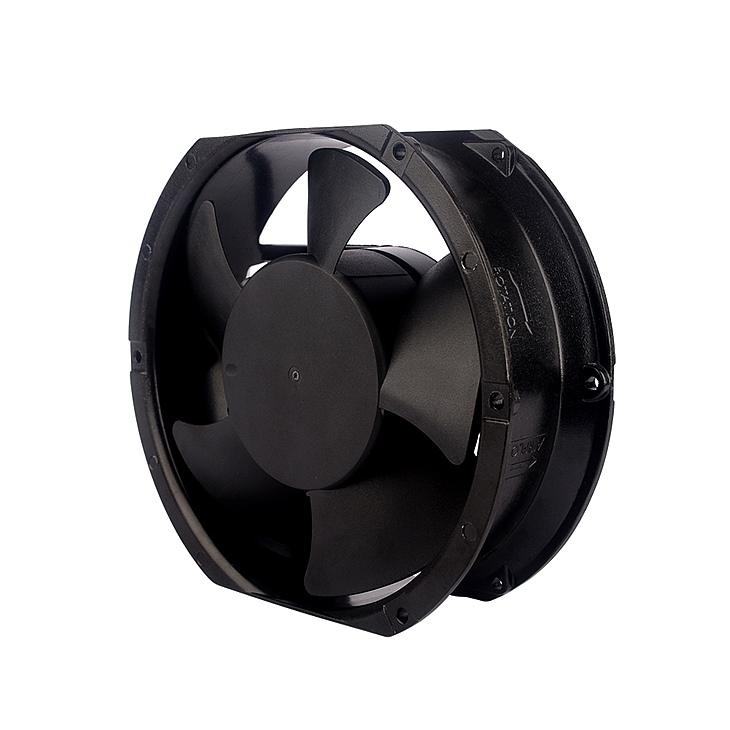

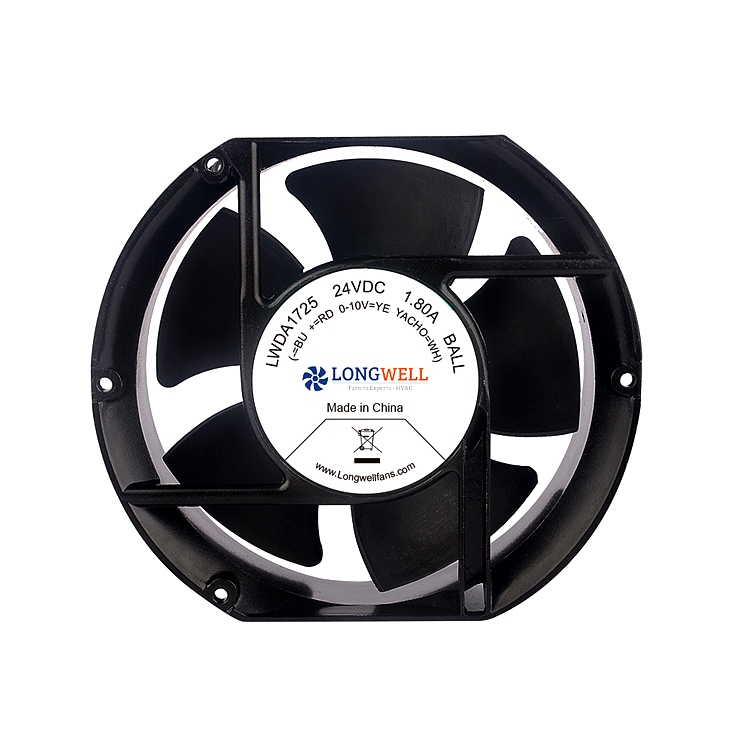

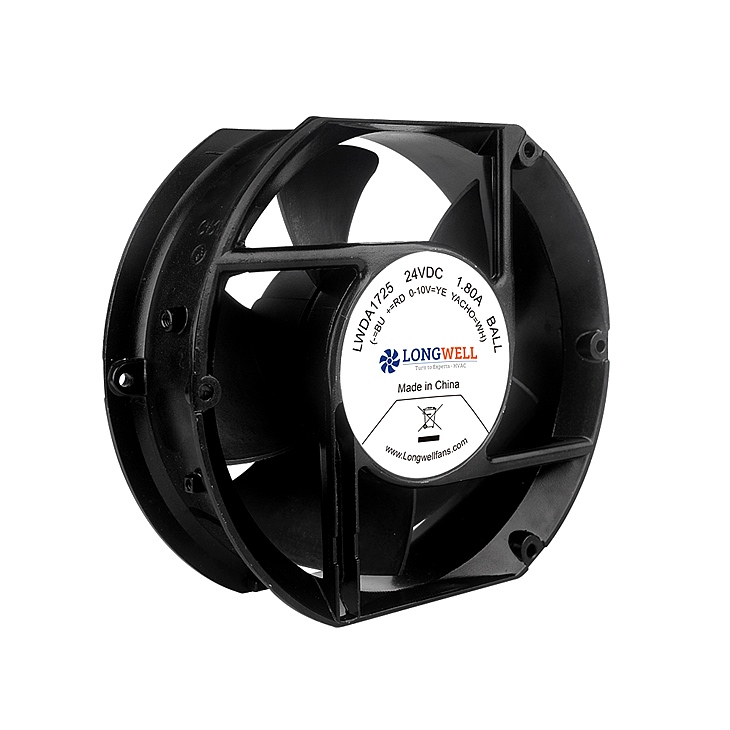

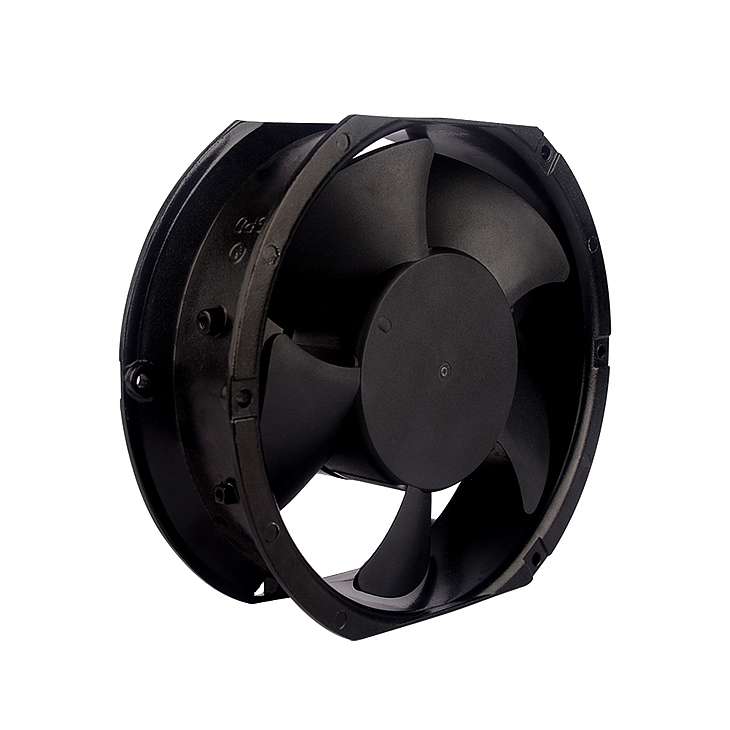

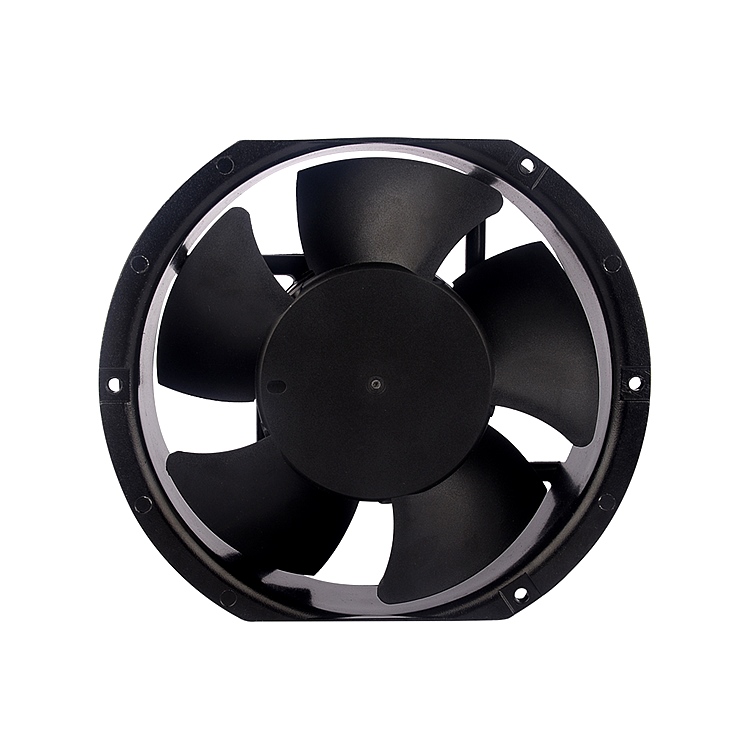

型號：LWAD17251
材質：塑料
電壓：12-48V
輸入功率：24-108W
轉速：2500-6000RPM
風量：5.19-12.91m3/min
產品特性：DC直流電機；高效率、低噪音、易安裝；性能穩定、生命周期長；低壓?jiǎn)?dòng)、過流保護；支持定制

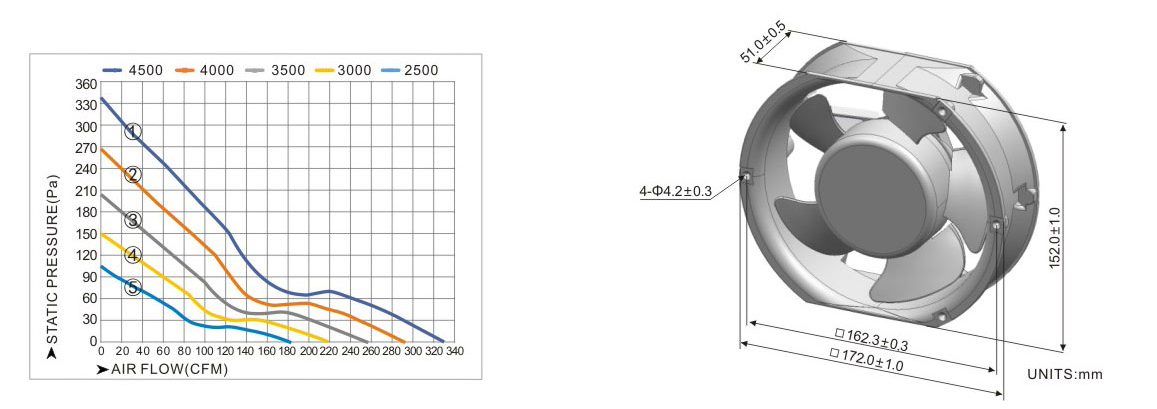

型號-朗偉 | 電壓 | 電流 | 風速 | 風量 | 靜壓 | 噪音 | 重量 | 曲線 | |||
V | A | RPM | CFM | m3/min | mm-H20 | Inch--H20 | Pa | dBA | g | ||
LWAD17251LX-01 | 12 | 5 | 4500 | 329.9 | 9.34 | 34.7 | 1.37 | 340 | 63.7 | 660g | 1 |
LWAD17251LX-02 | 12 | 3.5 | 4000 | 293.3 | 8.3 | 27.4 | 1.08 | 269 | 61.1 | 660g | 2 |
LWAD17251LH-03 | 12 | 3 | 3500 | 256.6 | 7.27 | 21 | 0.83 | 206 | 58.2 | 660g | 3 |
LWAD17251LM-04 | 12 | 2.5 | 3000 | 220 | 6.23 | 15.4 | 0.61 | 151 | 54.9 | 660g | 4 |
LWAD17251LL-05 | 12 | 2 | 2500 | 183.3 | 5.19 | 10.7 | 0.42 | 105 | 50.9 | 660g | 5 |
LWAD17251MX-01 | 24 | 4.5 | 4500 | 329.9 | 9.34 | 34.7 | 1.37 | 340 | 63.7 | 660g | 1 |
LWAD17251MX-02 | 24 | 3.5 | 4000 | 293.3 | 8.3 | 27.4 | 1.08 | 269 | 61.1 | 660g | 2 |
LWAD17251MH-03 | 24 | 2.5 | 3500 | 256.6 | 7.27 | 21 | 0.83 | 206 | 58.2 | 660g | 3 |
LWAD17251MM-04 | 24 | 2 | 3000 | 220 | 6.23 | 15.4 | 0.61 | 151 | 54.9 | 660g | 4 |
LWAD17251ML-05 | 24 | 1.5 | 2500 | 183.3 | 5.19 | 10.7 | 0.42 | 105 | 50.9 | 660g | 5 |
LWAD17251HX-01 | 48 | 2 | 4500 | 329.9 | 9.34 | 34.7 | 1.37 | 340 | 63.7 | 660g | 1 |
LWAD17251HX-02 | 48 | 1.6 | 4000 | 293.3 | 8.3 | 27.4 | 1.08 | 269 | 61.1 | 660g | 2 |
LWAD17251HH-03 | 48 | 1.2 | 3500 | 256.6 | 7.27 | 21 | 0.83 | 206 | 58.2 | 660g | 3 |
LWAD17251HM-04 | 48 | 1 | 3000 | 220 | 6.23 | 15.4 | 0.61 | 151 | 54.9 | 660g | 4 |
LWAD17251HL-05 | 48 | 0.6 | 2500 | 183.3 | 5.19 | 10.7 | 0.42 | 105 | 50.9 | 660g | 5 |
