型號：LWAD5025
材質：塑料
電壓：5-24V
輸入功率：1.3-4.32W
轉速：4500-6500RPM
風量：0.4-0.58m3/min
產品特性：DC直流電機；高效率、低噪音、易安裝；性能穩定、生命周期長；低壓?jiǎn)?dòng)、過流保護；支持定制

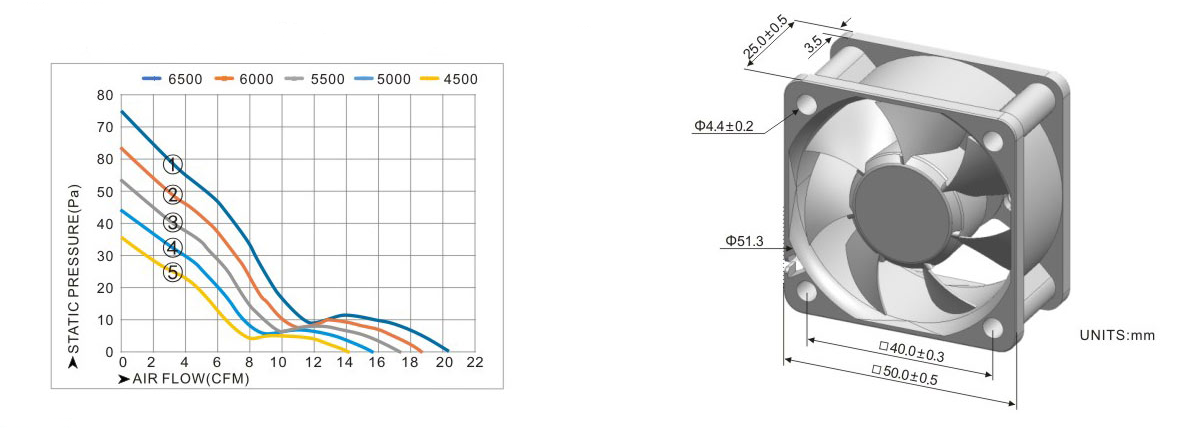

型號-朗偉 | 電壓 | 電流 | 風速 | 風量 | 靜壓 | 噪音 | 重量 | 曲線 | |||
V | A | RPM | CFM | m3/min | mm-H20 | Inch--H20 | Pa | dBA | g | ||
LWAD5025KX-01 | 5 | 0.6 | 6500 | 20.5 | 0.58 | 7.6 | 0.3 | 75 | 38.6 | 36g | 1 |
LWAD5025KH-02 | 5 | 0.5 | 6000 | 18.9 | 0.54 | 6.5 | 0.26 | 64 | 36.9 | 36g | 2 |
LWAD5025KM-03 | 5 | 0.4 | 5500 | 17.3 | 0.49 | 5.5 | 0.22 | 54 | 35 | 36g | 3 |
LWAD5025KL-04 | 5 | 0.35 | 5000 | 15.8 | 0.45 | 4.5 | 0.18 | 44 | 32.9 | 36g | 4 |
LWAD5025KD-05 | 5 | 0.26 | 4500 | 14.2 | 0.4 | 3.7 | 0.14 | 36 | 30.6 | 36g | 5 |
LWAD5025LX-01 | 12 | 0.28 | 6500 | 20.5 | 0.58 | 7.6 | 0.3 | 75 | 38.6 | 36g | 1 |
LWAD5025LH-02 | 12 | 0.24 | 6000 | 18.9 | 0.54 | 6.5 | 0.26 | 64 | 36.9 | 36g | 2 |
LWAD5025LM-03 | 12 | 0.2 | 5500 | 17,3 | 0.49 | 5.5 | 0.22 | 54 | 35 | 36g | 3 |
LWAD5025LL-04 | 12 | 0.16 | 5000 | 15.8 | 0.45 | 4.5 | 0.18 | 44 | 32.9 | 36g | 4 |
LWAD5025LD-05 | 12 | 0.12 | 4500 | 14.2 | 0.4 | 3.7 | 0.14 | 36 | 30.6 | 36g | 5 |
LWAD5025MX-01 | 24 | 0.18 | 6500 | 20.5 | 0.58 | 7.6 | 0.3 | 75 | 38.6 | 36g | 1 |
LWAD5025MH-02 | 24 | 0.16 | 6000 | 18.9 | 0.54 | 6.5 | 0.26 | 64 | 36.9 | 36g | 2 |
LWAD5025MM-03 | 24 | 0.14 | 5500 | 17.3 | 0.49 | 5.5 | 0.22 | 54 | 35 | 36g | 3 |
LWAD5025ML-04 | 24 | 0.12 | 5000 | 15.8 | 0.45 | 4.5 | 0.18 | 44 | 32.9 | 36g | 4 |
LWAD5025MD-05 | 24 | 0.1 | 4500 | 14.2 | 0.4 | 3.7 | 0.14 | 36 | 30.6 | 36g | 5 |
