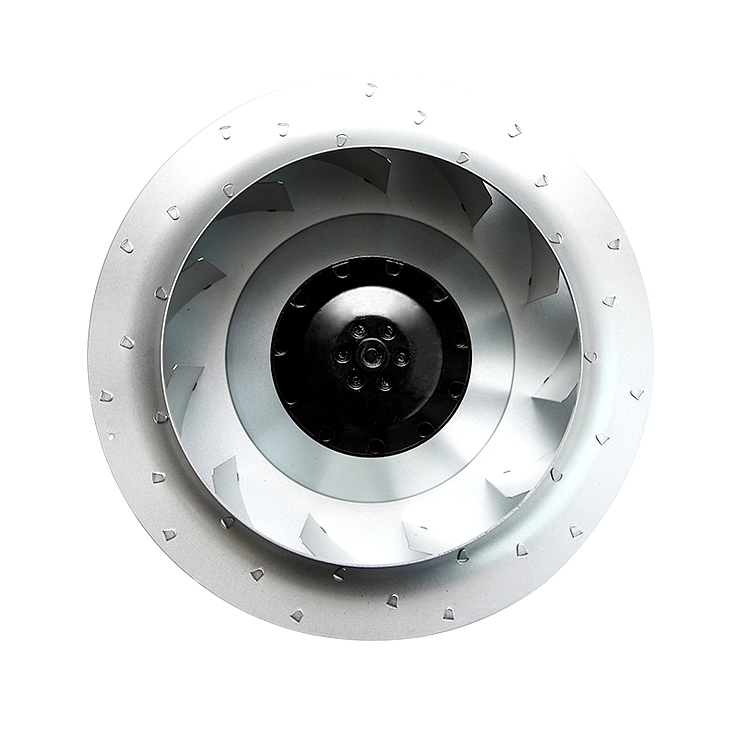

型號：LWBA4E-250
材質：塑料&鋁合金&鍍鋅板
電壓：230V/380V
輸入功率：53-290W
轉速：1400-2700RPM
風量：680-1700m3/h
產品特性：旋轉方向：順時針；操作模式：S1；保護類型：IP：54；絕緣等級：F；軸承：滾珠軸承；工作溫度：-40~+65℃
新型-朗偉 | 電機直徑 | 額定電壓 | 頻率 | 額定功率 | 額定電流 | 風速 | 風量 | 風壓 | 噪音 | 電容器 | 曲線 | 備注 |
(V) | (Hz) | (W) | (A) | (RPM) | m3/h | Pa | dBA) | uF | ||||

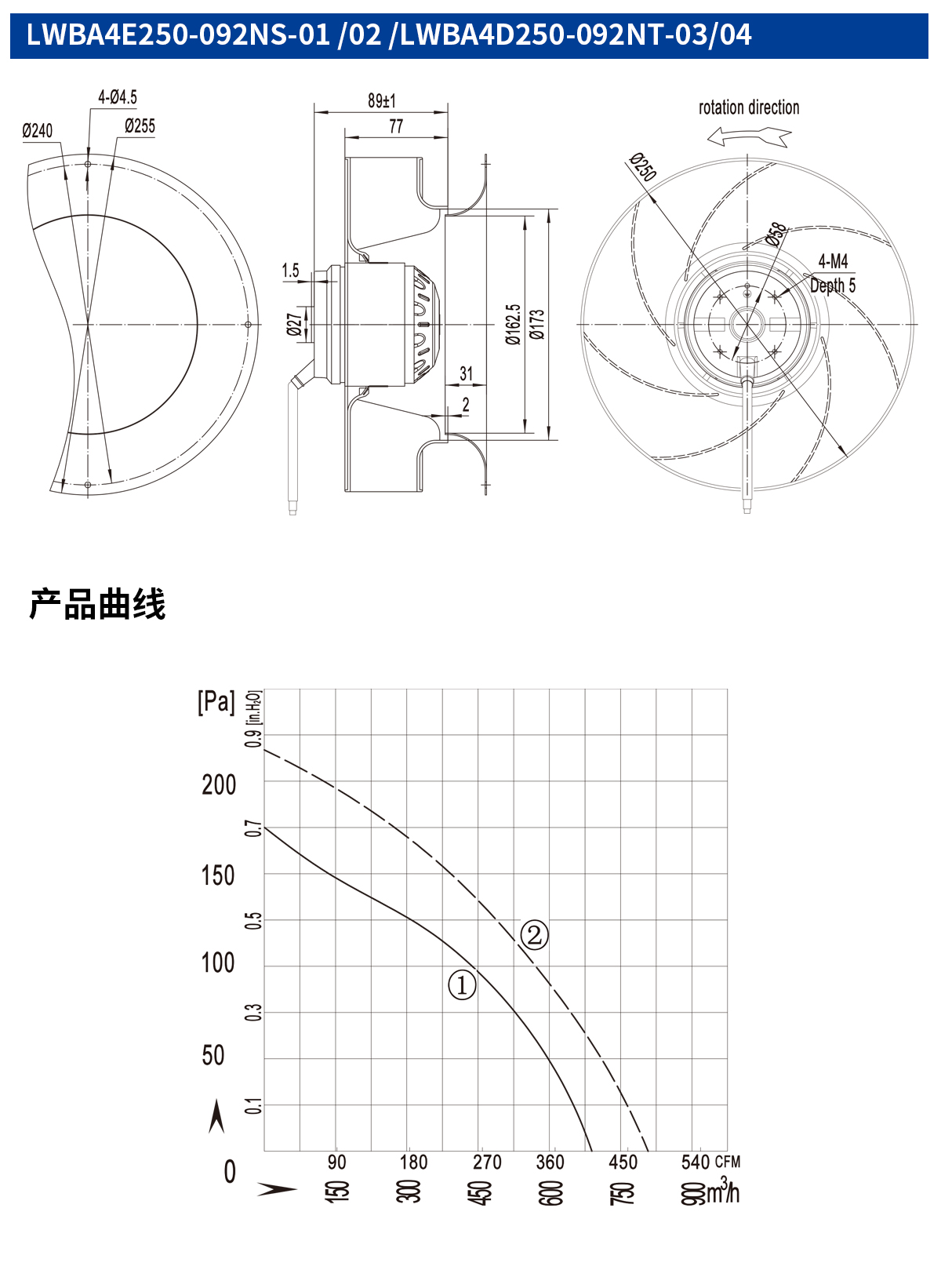

LWBA4E-250-092NS-01 | 92 | 230 | 50 | 53 | 0.28 | 1400 | 680 | 175 | 61.0 | 2 | ① | 塑料葉輪 |
LWBA4E-250-092NS-02 | 92 | 230 | 60 | 58 | 0.28 | 1600 | 800 | 220 | 64.0 | 2 | ② | 塑料葉輪 |
LWBA4D-250-092NT-03 | 92 | 380 | 50 | 53 | 0.15 | 1400 | 680 | 175 | 61.0 | / | ① | 塑料葉輪 |
LWBA4D-250-092NT-04 | 92 | 380 | 60 | 58 | 0.16 | 1600 | 800 | 220 | 64.0 | / | ② | 塑料葉輪 |

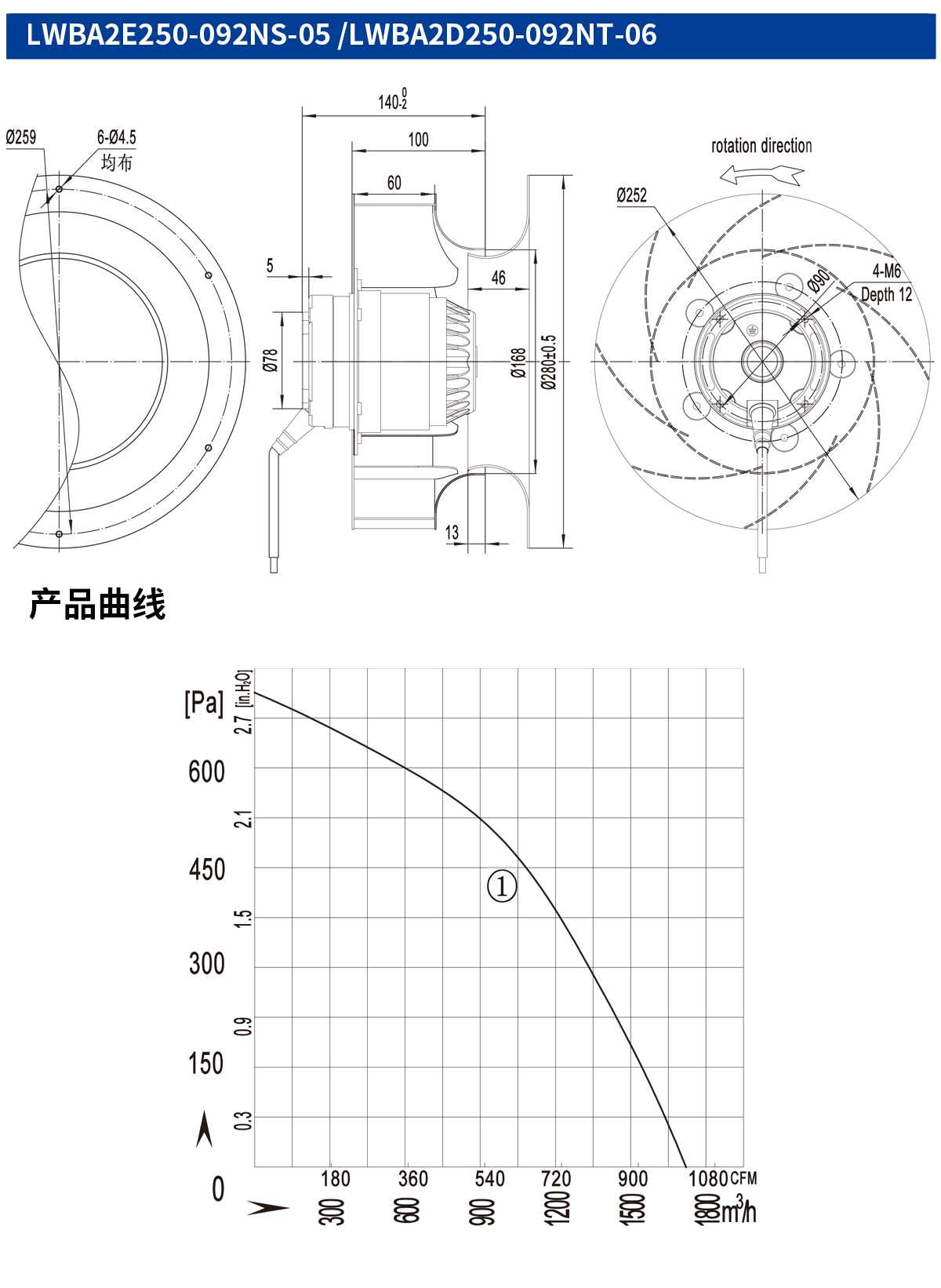

LWBA2E-250-92NS-05 | 92 | 230 | 50 | 290 | 1.20 | 2650 | 1700 | 700 | 76 | 6 | ① | 鋁葉輪 |
LWBA2D-250-92NT-06 | 92 | 380 | 50 | 290 | 0,90 | 2800 | 1700 | 700 | 77 | / | ① | 鋁葉輪 |

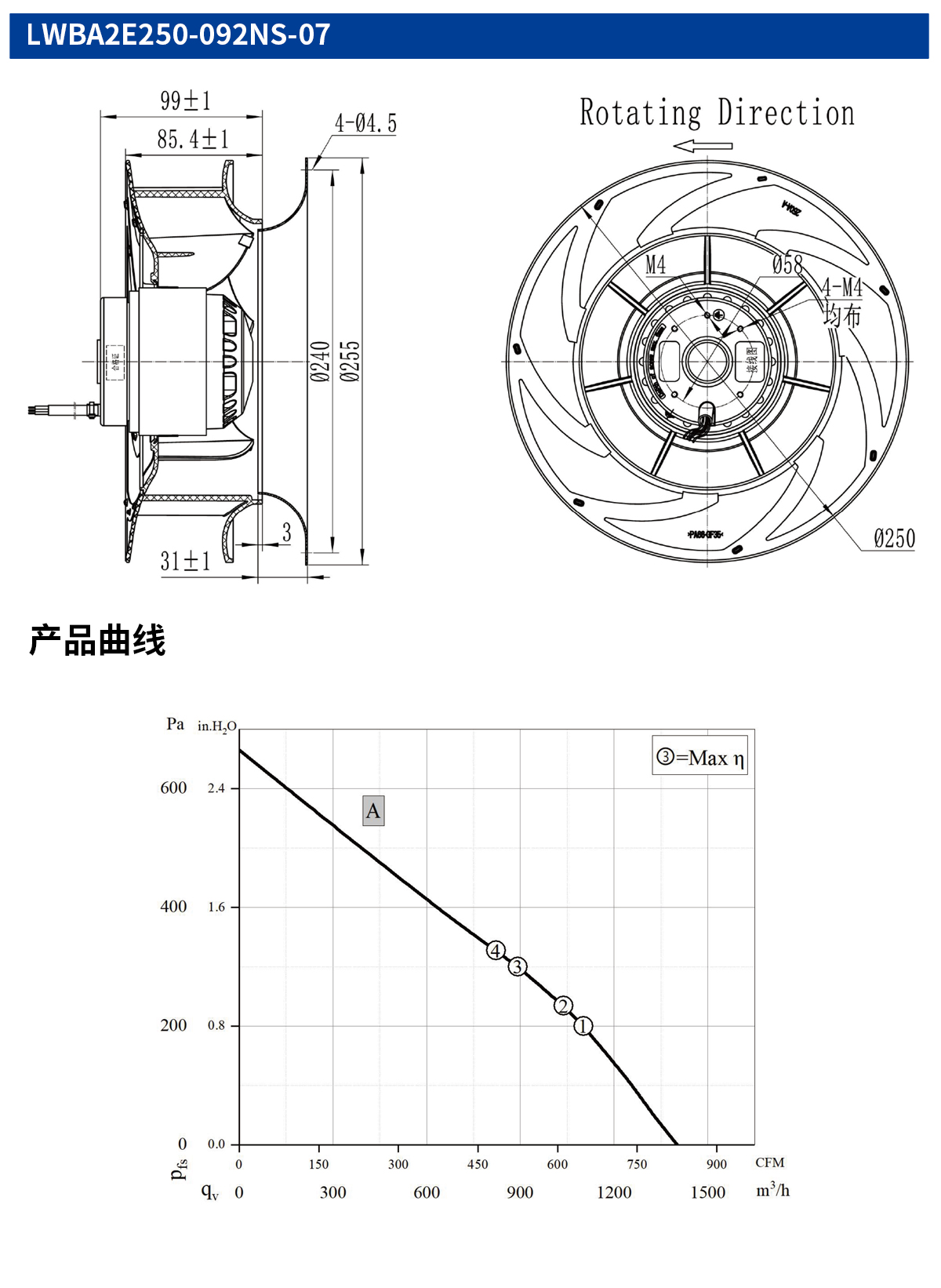

LWBA2E-250-92NS-07 | 92 | 230 | 50 | 151 | 0.66 | 2700 | 1400 | 680 | 72.7 | 5 | A | 塑料葉輪 |

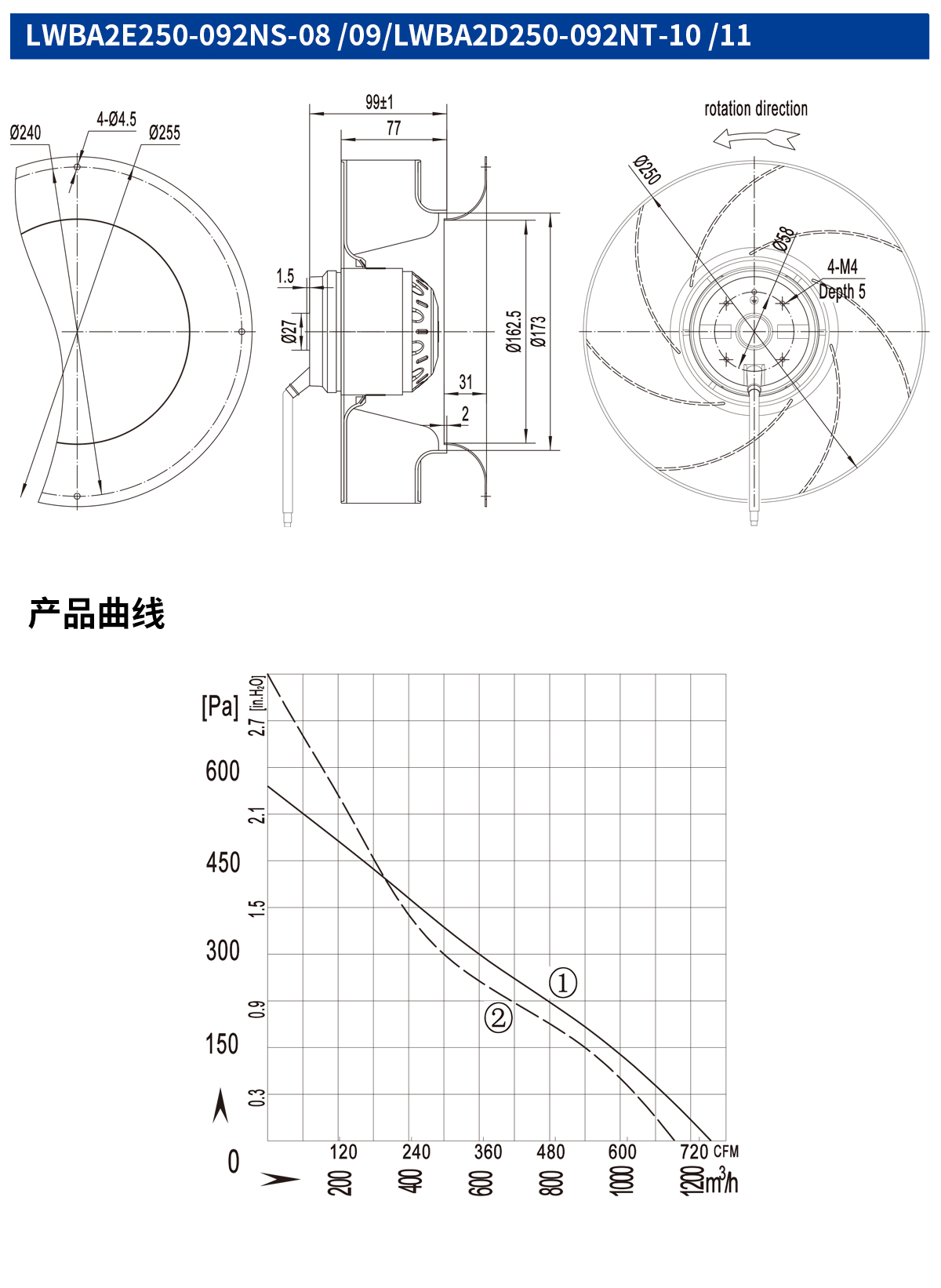

LWBA2E-250-092NS-08 | 92 | 230 | 50 | 135 | 0.60 | 2450 | 1250 | 580 | 74.0 | 4 | ① | 塑料葉輪 |
LWBA2E-250-092NS-09 | 92 | 230 | 60 | 190 | 0.90 | 2600 | 1150 | 750 | 76.0 | 4 | ② | 塑料葉輪 |
LWBA2D-250-092NT-10 | 92 | 380 | 50 | 160 | 0.32 | 2450 | 1250 | 580 | 74.0 | / | ① | 塑料葉輪 |
LWBA2D-250-092NT-11 | 92 | 380 | 60 | 185 | 0.38 | 2600 | 1150 | 750 | 76.0 | ./ | ② | 塑料葉輪 |

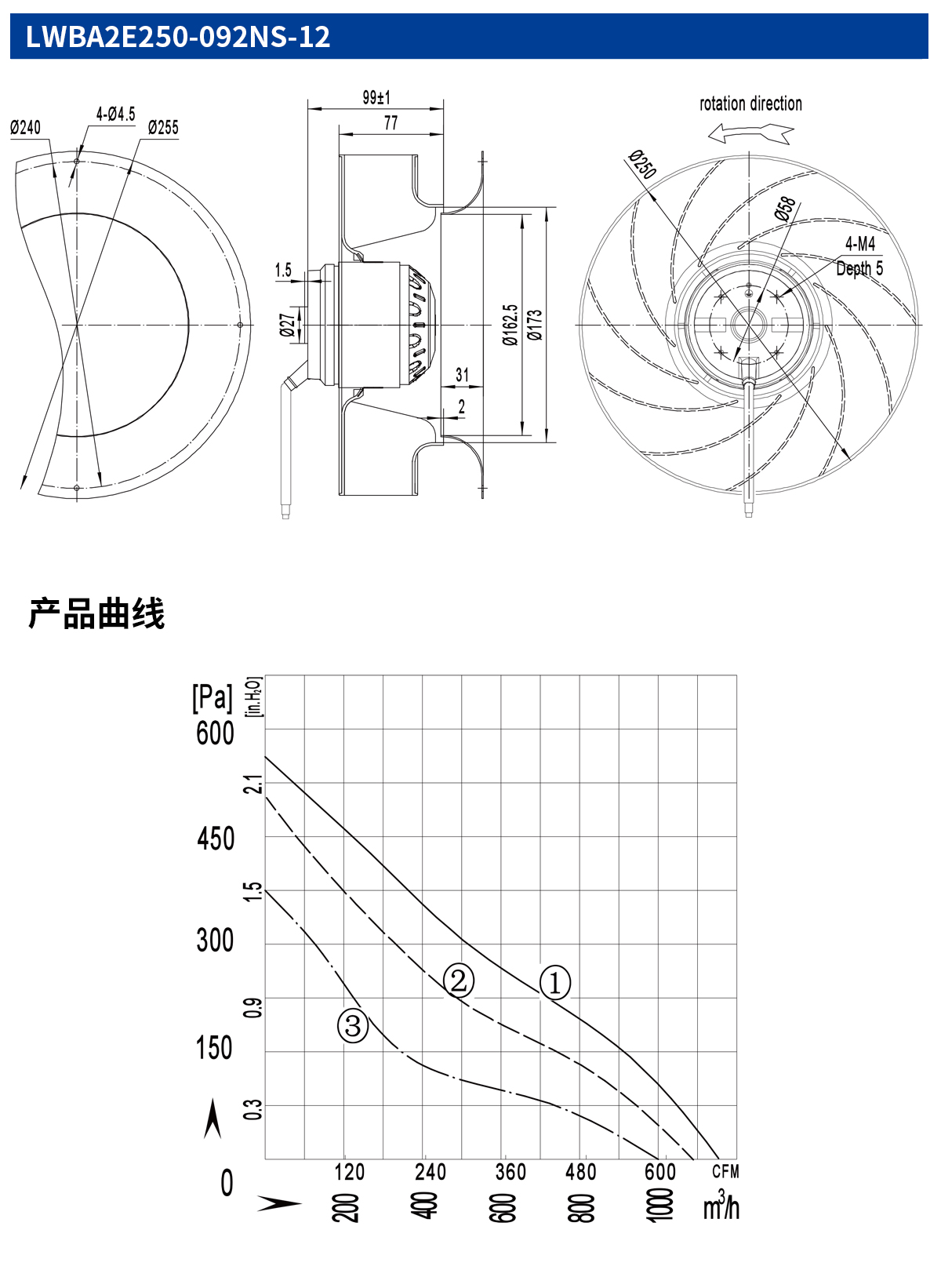

LWBA2E-250-092NS-12 | 92 | 230 | 50 | 130 | 0.62 | 2650 | 1150 | 550 | 76.0 | 4 | ① | 塑料葉輪 |
125 | 0.58 | 2400 | 1090 | 500 | 70.0 | 4 | ② | 塑料葉輪 | ||||
120 | 0.56 | 2150 | 1000 | 375 | 65.0 | 4 | ③ | 塑料葉輪 | ||||

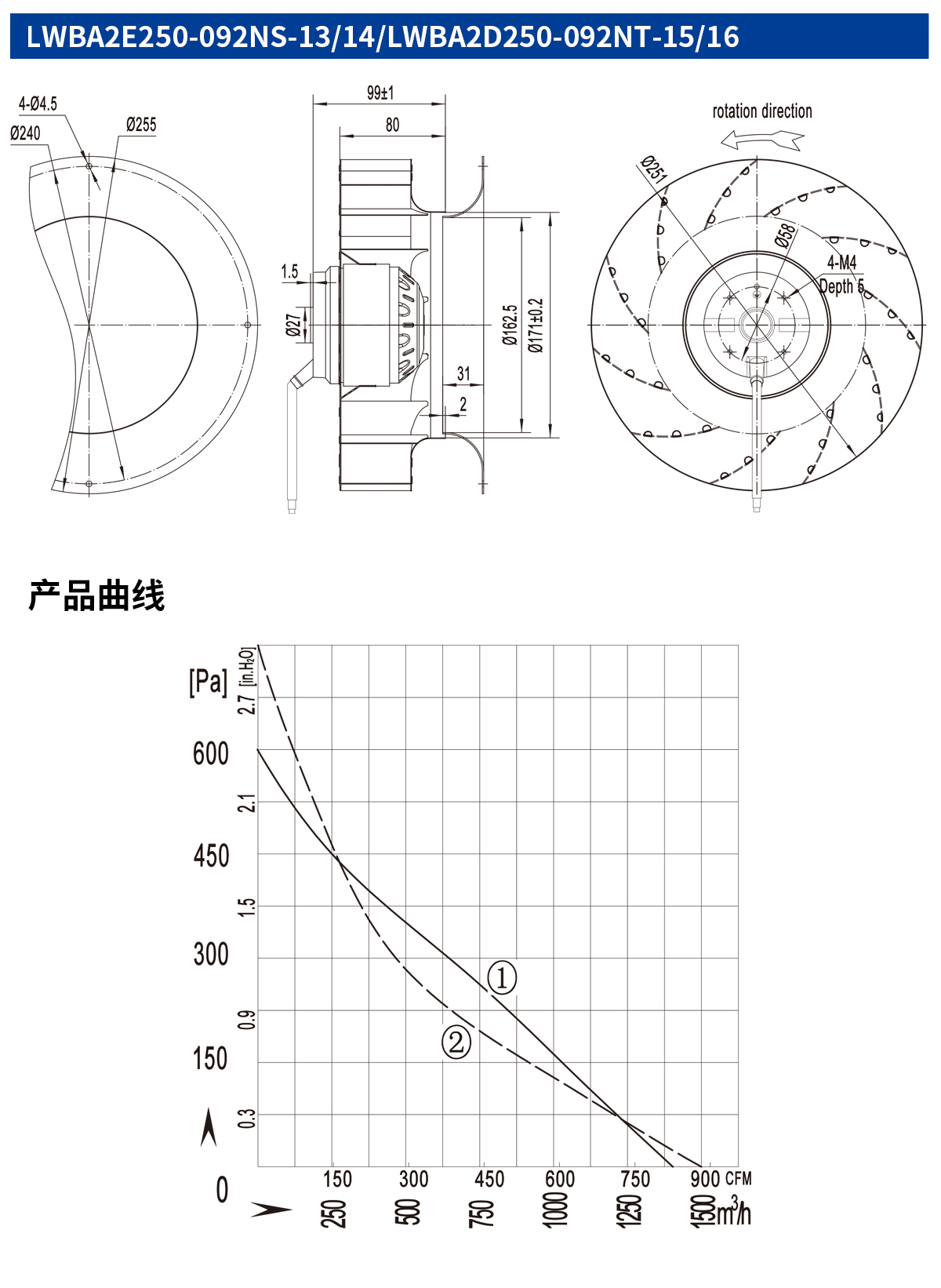

LWBA2E-250-092NS-13 | 92 | 230 | 50 | 155 | 0.70 | 2500 | 1380 | 600 | 76.0 | 4 | ① | 鍍鋅板葉輪 |
LWBA2E-250-092NS-14 | 92 | 230 | 60 | 210 | 0.95 | 2600 | 1455 | 750 | 79.0 | 4 | ② | 鍍鋅板葉輪 |
LWBA2D-250-092NT-15 | 92 | 380 | 50 | 150 | 0.31 | 2450 | 1380 | 600 | 76.0 | / | ① | 鍍鋅板葉輪 |
LWBA2D-250-092NT-16 | 92 | 380 | 60 | 200 | 0.37 | 2550 | 1455 | 750 | 79.0 | / | ② | 鍍鋅板葉輪 |

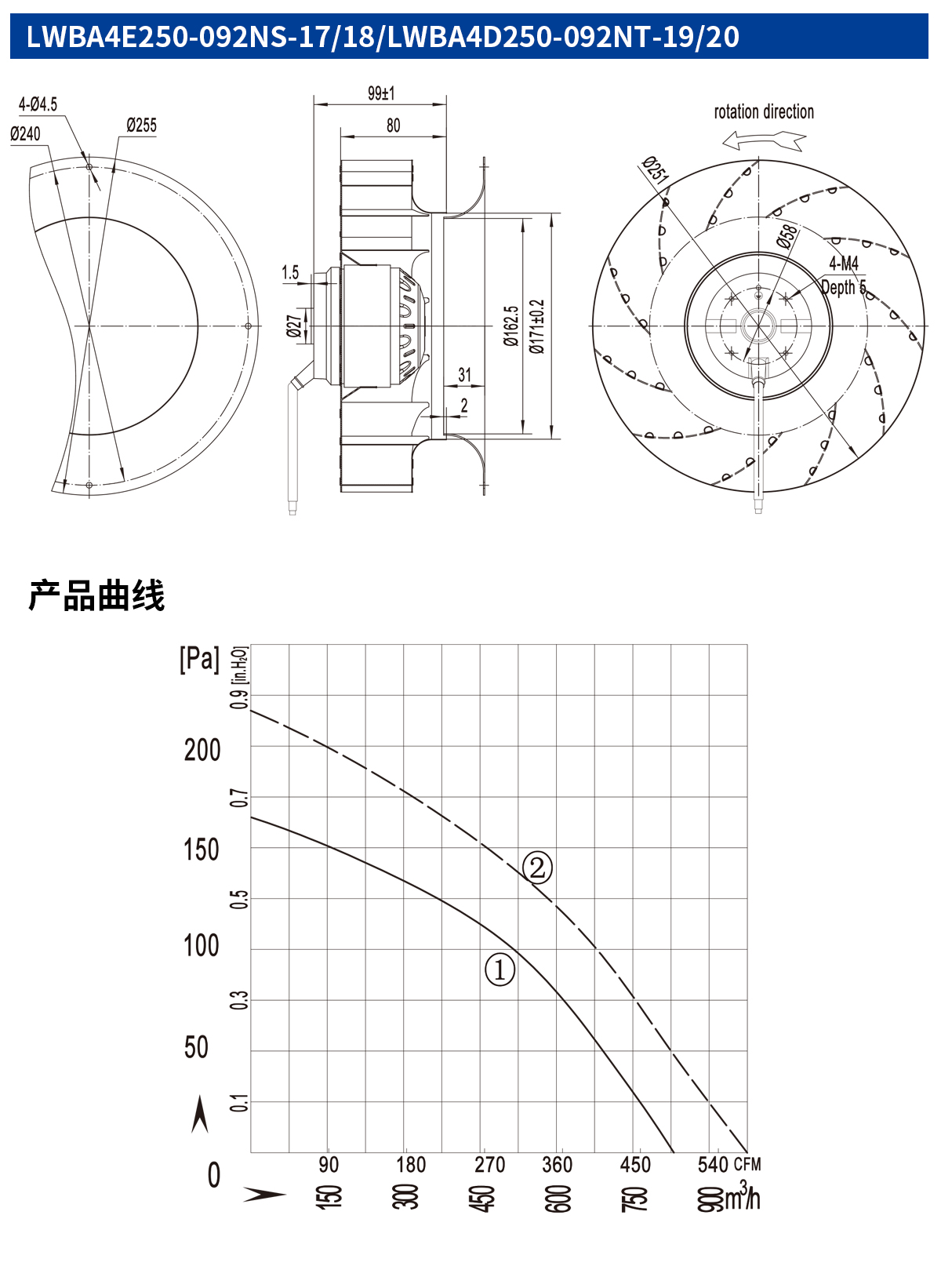

LWBA4E-250-092NS-17 | 92 | 230 | 50 | 50 | 0.24 | 1400 | 830 | 160 | 68.0 | 2 | ① | 鍍鋅板葉輪 |
LWBA4E-250-092NS-18 | 92 | 230 | 60 | 60 | 0.27 | 1600 | 950 | 240 | 70.0 | 2 | ② | 鍍鋅板葉輪 |
LWBA4D-250-092NT-19 | 92 | 380 | 50 | 50 | 0.15 | 1450 | 830 | 160 | 68.0 | / | ① | 鍍鋅板葉輪 |
LWBA4D-250-092NT-20 | 92 | 380 | 60 | 60 | 0.15 | 1600 | 950 | 240 | 70.0 | / | ② | 鍍鋅板葉輪 |
LWBA2E-250-092NT-21 | 92 | 380 | 50 | 151 | 0.66 | 2700 | 1400 | 680 | 73 | / | ① | 塑料葉輪 |
