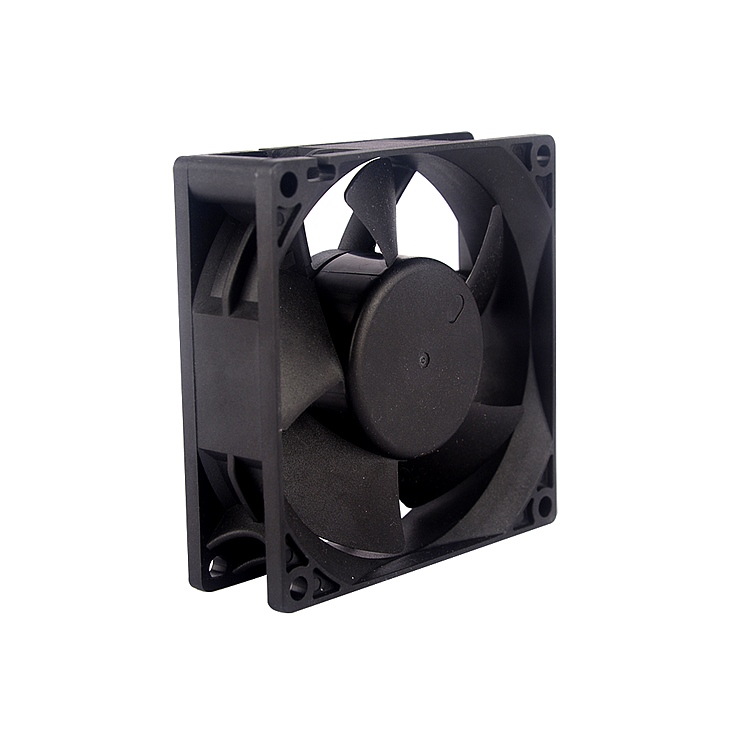

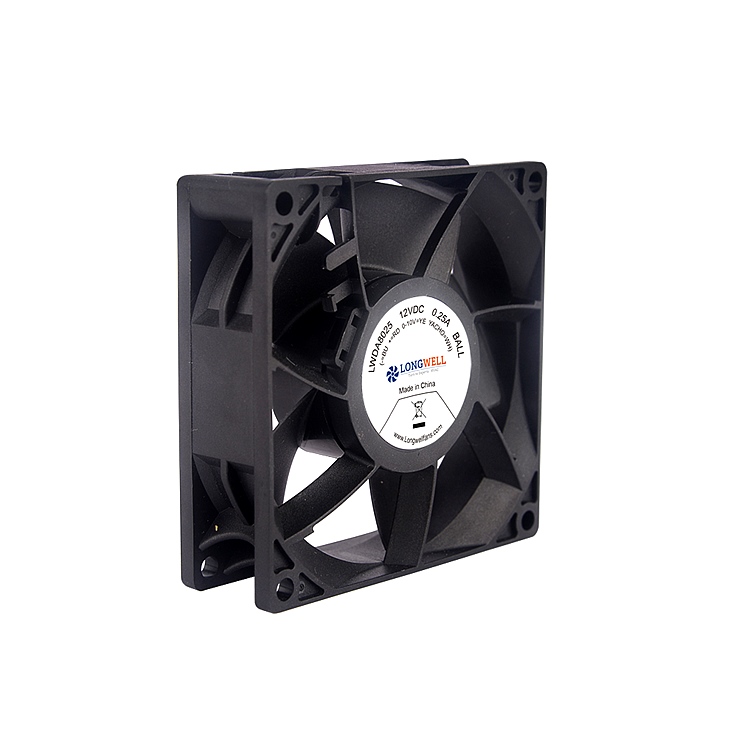

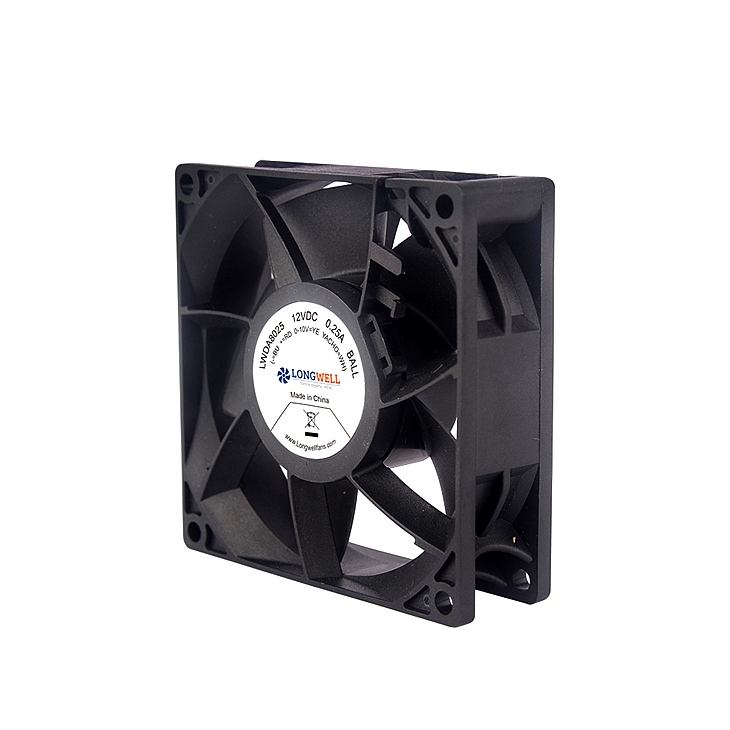

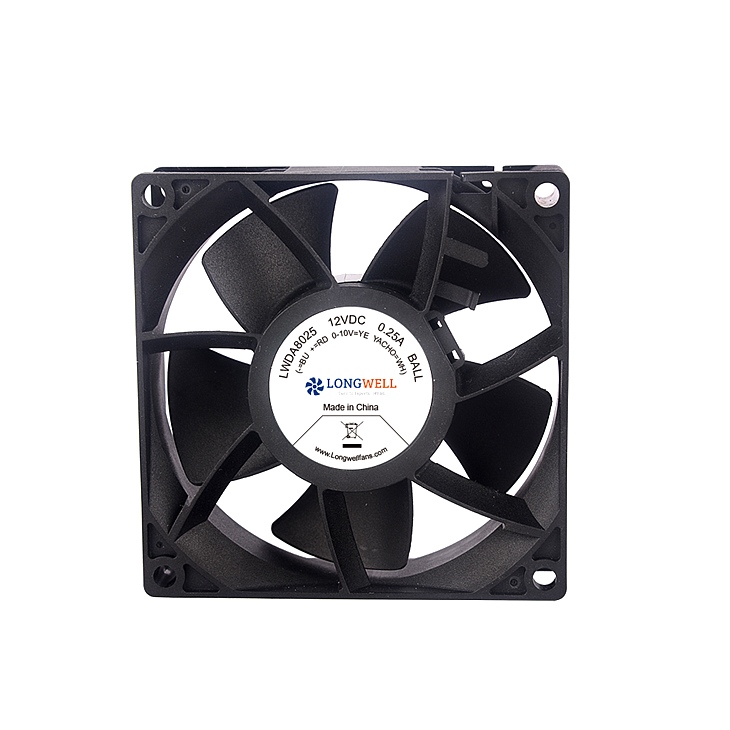

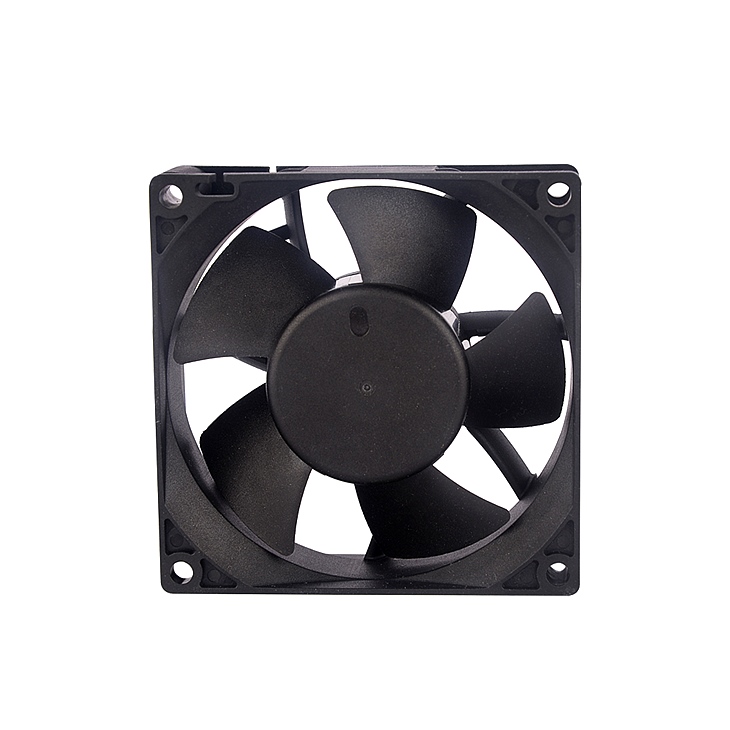

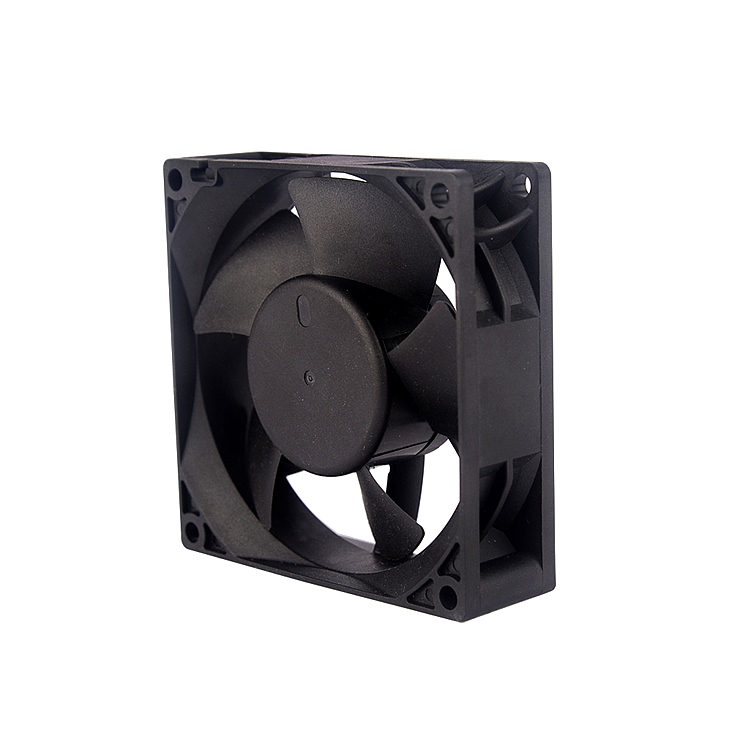

型號：LWAD8025
材質：塑料
電壓：12-48V
輸入功率：4.8-28.8W
轉速：2500-10000RPM
風量：0.57-3.21m3/min
產品特性：DC直流電機；高效率、低噪音、易安裝；性能穩定、生命周期長；低壓?jiǎn)?dòng)、過流保護；支持定制

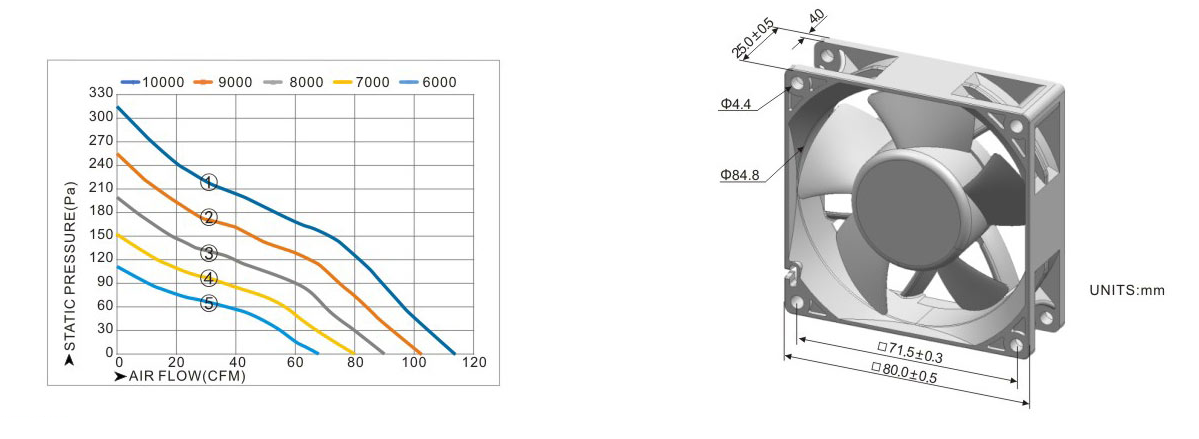

型號-朗偉 | 電壓 | 電流 | 風速 | 風量 | 靜壓 | 噪音 | 重量 | 曲線 | |||
V | A | RPM | CFM | m3/min | mm-H20 | Inch--H20 | Pa | dBA | g | ||
LWAD8025LX-10 | 12 | 1.6 | 10000 | 113.3 | 3.21 | 31.9 | 1.26 | 313 | 62.7 | 95g | 1 |
LWAD8025LH-11 | 12 | 1.2 | 9000 | 102 | 2.89 | 25.9 | 1.02 | 254 | 60.4 | 95g | 2 |
LWAD8025LM-12 | 12 | 0.8 | 8000 | 90.6 | 2.57 | 20.4 | 0.8 | 200 | 57.9 | 95g | 3 |
LWAD8025LL-13 | 12 | 0.6 | 7000 | 79.3 | 2.25 | 15.7 | 0.62 | 153 | 55 | 95g | 4 |
LWAD8025LD-14 | 12 | 0.4 | 6000 | 68 | 1.92 | 11.5 | 0.45 | 113 | 51.6 | 95g | 5 |
LWAD8025MX-10 | 24 | 1.2 | 10000 | 113.3 | 3.21 | 31.9 | 1.26 | 313 | 62.7 | 95g | 1 |
LWAD8025MH-11 | 24 | 0.8 | 9000 | 102 | 2.89 | 25.9 | 1.02 | 254 | 60.4 | 95g | 2 |
LWAD8025MM-12 | 24 | 0.6 | 8000 | 90.6 | 2.57 | 20.4 | 0.8 | 200 | 57.9 | 95g | 3 |
LWAD8025ML-13 | 24 | 0.5 | 7000 | 79.3 | 2.25 | 15.7 | 0.62 | 153 | 55 | 95g | 4 |
LWAD8025MD-14 | 24 | 0.3 | 6000 | 68 | 1.92 | 11.5 | 0.45 | 113 | 51.6 | 95g | 5 |
LWAD8025HX-10 | 48 | 0.5 | 10000 | 113.3 | 3.21 | 31.9 | 1.26 | 313 | 62.7 | 95g | 4 |
LWAD8025HH-11 | 48 | 0.4 | 9000 | 102 | 2.89 | 25.9 | 1.02 | 254 | 60.4 | 95g | 2 |
LWAD8025HM-12 | 48 | 0.3 | 8000 | 90.6 | 2.57 | 20.4 | 0.8 | 200 | 57.9 | 95g | 3 |
LWAD8025HL-13 | 48 | 0.2 | 7000 | 79.3 | 2.25 | 15.7 | 0.62 | 153 | 55 | 95g | 4 |
LWAD8025HD-14 | 48 | 0.15 | 6000 | 68 | 1.92 | 11.5 | 0.45 | 113 | 51.6 | 95g | 5 |
