型號：LWAD8025
材質：塑料
電壓：12-48V
輸入功率：4.8-28.8W
轉速：2500-10000RPM
風量：0.57-3.21m3/min
產品特性：DC直流電機；高效率、低噪音、易安裝；性能穩定、生命周期長；低壓啟動、過流保護；支持定制

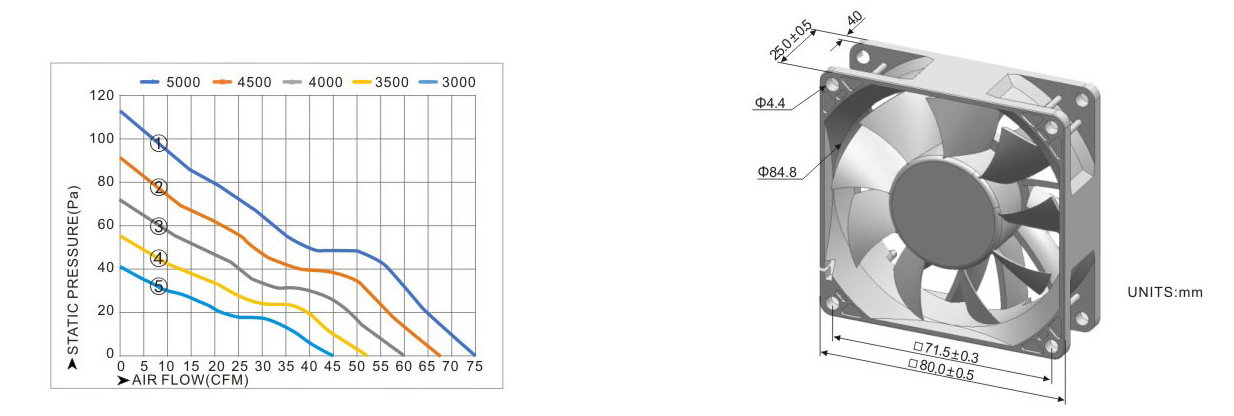

型號-朗偉 | 電壓 | 電流 | 風速 | 風量 | 靜壓 | 噪音 | 重量 | 曲線 | |||
V | A | RPM | CFM | m3/min | mm-H20 | Inch--H20 | Pa | dBA | g | ||
LWAD8025LX-15 | 12 | 1.6 | 5000 | 74.7 | 2.11 | 11.6 | 0.46 | 114 | 50.6 | 90g | 1 |
LWAD8025LH-16 | 12 | 1.2 | 4500 | 67.2 | 1.9 | 9.4 | 0.37 | 92 | 48.3 | 90g | 2 |
LWAD8025LM-17 | 12 | 0.8 | 4000 | 59.7 | 1.69 | 7.4 | 0.29 | 73 | 45.8 | 90g | 3 |
LWAD8025LL-18 | 12 | 0.6 | 3500 | 52.3 | 0.57 | 5.7 | 0.22 | 56 | 42.9 | 90g | 4 |
LWAD8025LD-19 | 12 | 0.4 | 3000 | 44.8 | 1.27 | 4.2 | 0.16 | 41 | 39.5 | 90g | 5 |
LWAD8025MX-15 | 24 | 1.2 | 5000 | 74.7 | 2.11 | 11.6 | 0.46 | 114 | 50.6 | 90g | 1 |
LWAD8025MH-16 | 24 | 0.8 | 4500 | 672 | 1.9 | 9.4 | 0.37 | 92 | 48.3 | 90g | 2 |
LWAD8025MM-17 | 24 | 0.6 | 4000 | 59.7 | 1.69 | 7.4 | 0.29 | 73 | 45.8 | 90g | 3 |
LWAD8025ML-18 | 24 | 0.5 | 3500 | 52.3 | 0.57 | 5.7 | 0.22 | 56 | 42.9 | 90g | 4 |
LWAD8025MD-19 | 24 | 0.3 | 3000 | 44.8 | 1.27 | 4.2 | 0.16 | 41 | 39.5 | 90g | 5 |
LWAD8025HX-15 | 48 | 0.5 | 5000 | 74.7 | 2.11 | 11.6 | 0.46 | 114 | 50.6 | 90g | 1 |
LWAD8025HH-16 | 48 | 0.4 | 4500 | 672 | 1.9 | 9.4 | 0.37 | 92 | 48.3 | 90g | 2 |
LWAD8025HM-17 | 48 | 0.3 | 4000 | 59.7 | 1.69 | 7.4 | 0.29 | 73 | 45.8 | 90g | 3 |
LWAD8025HL-18 | 48 | 0.2 | 3500 | 52.3 | 0.57 | 5.7 | 0.22 | 56 | 42.9 | 90g | 4 |
LWAD8025HD-19 | 48 | 0.15 | 3000 | 44.8 | 1.27 | 4.2 | 0.16 | 41 | 39.5 | 90g | 5 |
