型號：LWCA-40
材質：鋁合金
電壓：220V
輸入功率：8-22.6W
轉速：1750-3000RPM
風量：36-255m3/h
產品特性：高強度機身電泳處理；精密滾珠軸承；絕緣等級E級；適用于電壁爐、家用取暖器、空氣凈化器、地送風空調；水平安裝

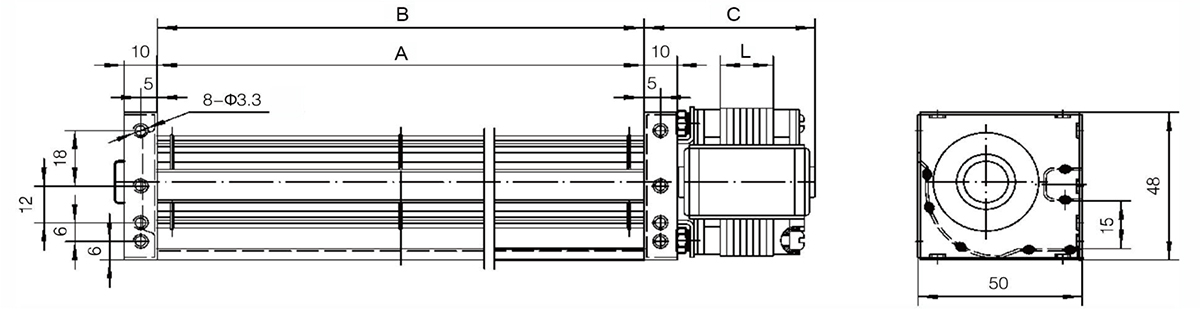

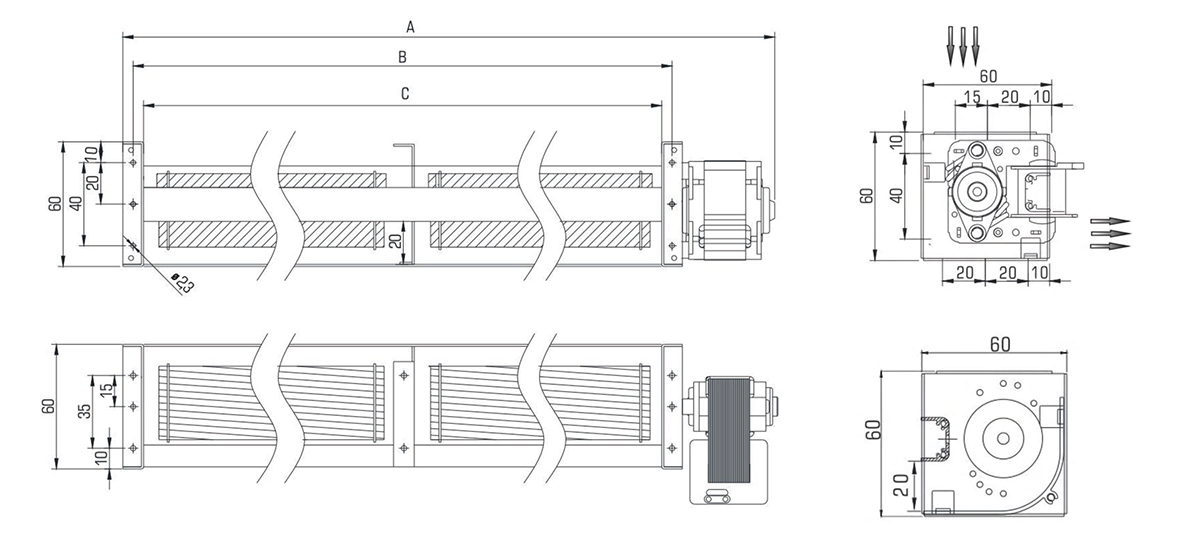

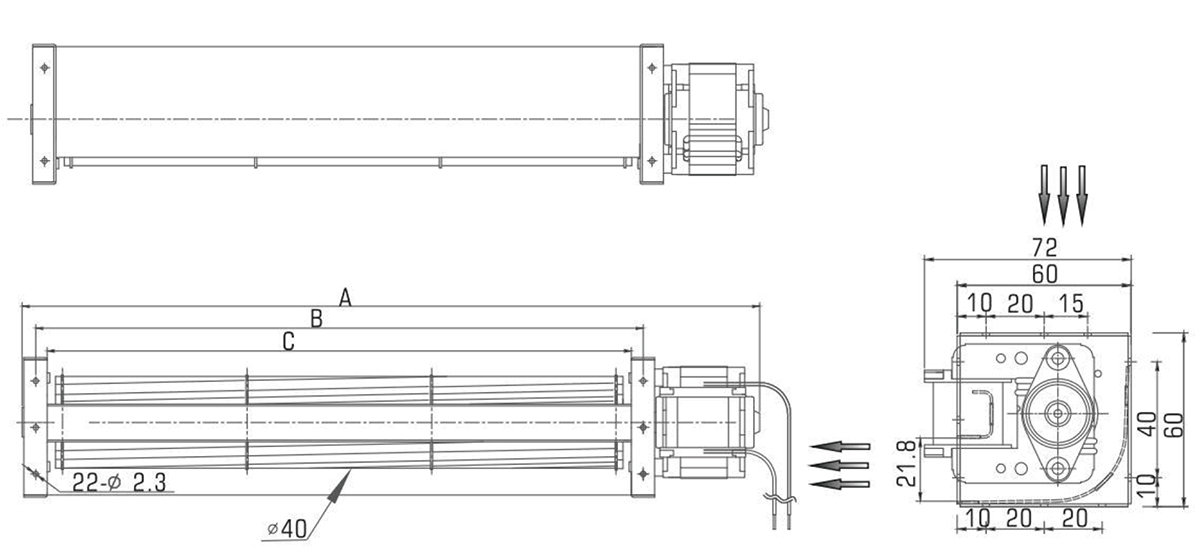

型號-朗偉 | 直徑 | 電壓 | 頻率 | 功率 | 風速 | 風壓 | 風量 | 噪音 | ||
A | B | C | V | Hz | W | RPM | mmH2O/Pa | m3/h | dB(A) | |
LWCA-40120SN-01 | 120 | 128 | 40 | 220 | 50 | 8 | 2560 | 1.3/13 | 45 | 37 |
LWCA-40180SN-01 | 180 | 188 | 40 | 220 | 50 | 11 | 2450 | 1.8/18 | 68 | 38 |
LWCA-40240SN-01 | 240 | 248 | 40 | 220 | 50 | 13 | 2300 | 2.0/20 | 83 | 38 |
LWCA-40300SN-01 | 300 | 308 | 51 | 220 | 50 | 16 | 2500 | 2.2/23 | 110 | 43 |
LWCA-40360SN-01 | 360 | 368 | 51 | 220 | 50 | 20 | 2500 | 2.4/24 | 135 | 48 |
LWCA-4090UN-01 | 158 | 108 | 98 | 120 | 60 | 16.2 | 3200 | 25 | 40 | 35 |
LWCA-4090SN-02 | 230 | 50 | 13.9 | 2700 | 20 | 36 | 35 | |||
LWCA-40150UN-01 | 218 | 170 | 160 | 120 | 60 | 16.8 | 3000 | 24 | 60 | 36 |
LWCA-40150SN-02 | 230 | 50 | 14.6 | 2500 | 19 | 57 | 36 | |||
LWCA-40190UN-01 | 265 | 208 | 198 | 120 | 60 | 17.2 | 2900 | 24 | 77 | 38 |
LWCA-40190SN-02 | 230 | 50 | 14.5 | 2400 | 19 | 68 | 36 | |||
LWCA-40250UN-01 | 316 | 260 | 250 | 120 | 60 | 21.9 | 3000 | 24 | 98 | 38 |
LWCA-40250SN-02 | 230 | 50 | 18.5 | 2500 | 19 | 90 | 37 | |||
LWCA-40290UN-01 | 370 | 310 | 300 | 120 | 60 | 22.6 | 2800 | 23 | 113 | 39 |
LWCA-40290SN-02 | 230 | 50 | 18.8 | 2400 | 19 | 106 | 38 | |||
LWCA-40350UN-01 | 417 | 358 | 348 | 120 | 60 | 20.5 | 2900 | 24 | 152 | 39 |
LWCA-40350SN-02 | 230 | 50 | 19.6 | 2500 | 19 | 132 | 37 | |||
LWCA-40420UN-01 | 491 | 430 | 420 | 120 | 60 | 21.6 | 2700 | 22 | 170 | 38 |
LWCA-40420SN-02 | 230 | 50 | 20 | 2500 | 19 | 163 | 37 | |||
LWCA-40530SN-01 | 600 | 540 | 530 | 220 | 50 | 20 | 2000 | 19 | 140 | 36 |
LWCA-40610SN-01 | 680 | 620 | 610 | 220 | 50 | 20 | 1950 | 19 | 150 | 35 |
LWCA-40700SN-01 | 770 | 710 | 700 | 220 | 50 | 21 | 1750 | 18 | 155 | 34 |
LWCA-40800SN-01 | 870 | 810 | 800 | 220 | 50 | 16 | 2300 | 18 | 205 | 36 |
LWCA-40854SN-01 | 924 | 864 | 854 | 220 | 50 | 16 | 2200 | 18 | 209 | 37 |
LWCA-40920SN-01 | 990 | 930 | 920 | 220 | 50 | 17 | 2100 | 18 | 222 | 37 |
LWCA-401055SN-01 | 1125 | 1065 | 1055 | 220 | 50 | 17 | 2100 | 18 | 255 | 38 |
LWCA-40090SN-01 | 158 | 108 | 98 | 120 | 60 | 17 | 3000 | 22 | 48 | 37 |
LWCA-40090UN-02 | 230 | 50 | 14 | 2700 | 18 | 41 | 37 | |||
LWCA-40150SN-01 | 218 | 170 | 160 | 120 | 60 | 17 | 3000 | 22 | 72 | 38 |
LWCA-40150UN-02 | 230 | 50 | 15 | 2500 | 16 | 61 | 38 | |||
LWCA-40190SN-01 | 265 | 208 | 198 | 120 | 60 | 18 | 2900 | 22 | 86 | 39 |
LWCA-40190UN-02 | 230 | 50 | 15 | 2400 | 14 | 70 | 38 | |||
LWCA-40250SN-01 | 316 | 260 | 250 | 120 | 60 | 22 | 2800 | 21 | 110 | 39 |
LWCA-40250UN-02 | 230 | 50 | 19 | 2500 | 15 | 90 | 38 | |||
LWCA-40290SN-01 | 370 | 310 | 300 | 120 | 60 | 23 | 2800 | 21 | 135 | 40 |
LWCA-40290UN-02 | 230 | 50 | 19 | 2300 | 11 | 115 | 37 | |||
LWCA-40350SN-01 | 417 | 358 | 350 | 120 | 60 | 21 | 2700 | 19 | 150 | 41 |
LWCA-40350UN-02 | 230 | 50 | 21 | 2400 | 15 | 130 | 39 | |||
LWCA-40420SN-01 | 491 | 430 | 420 | 120 | 60 | 22 | 2600 | 20 | 170 | 42 |
LWCA-40420UN-02 | 230 | 50 | 21 | 2300 | 11 | 145 | 40 | |||
